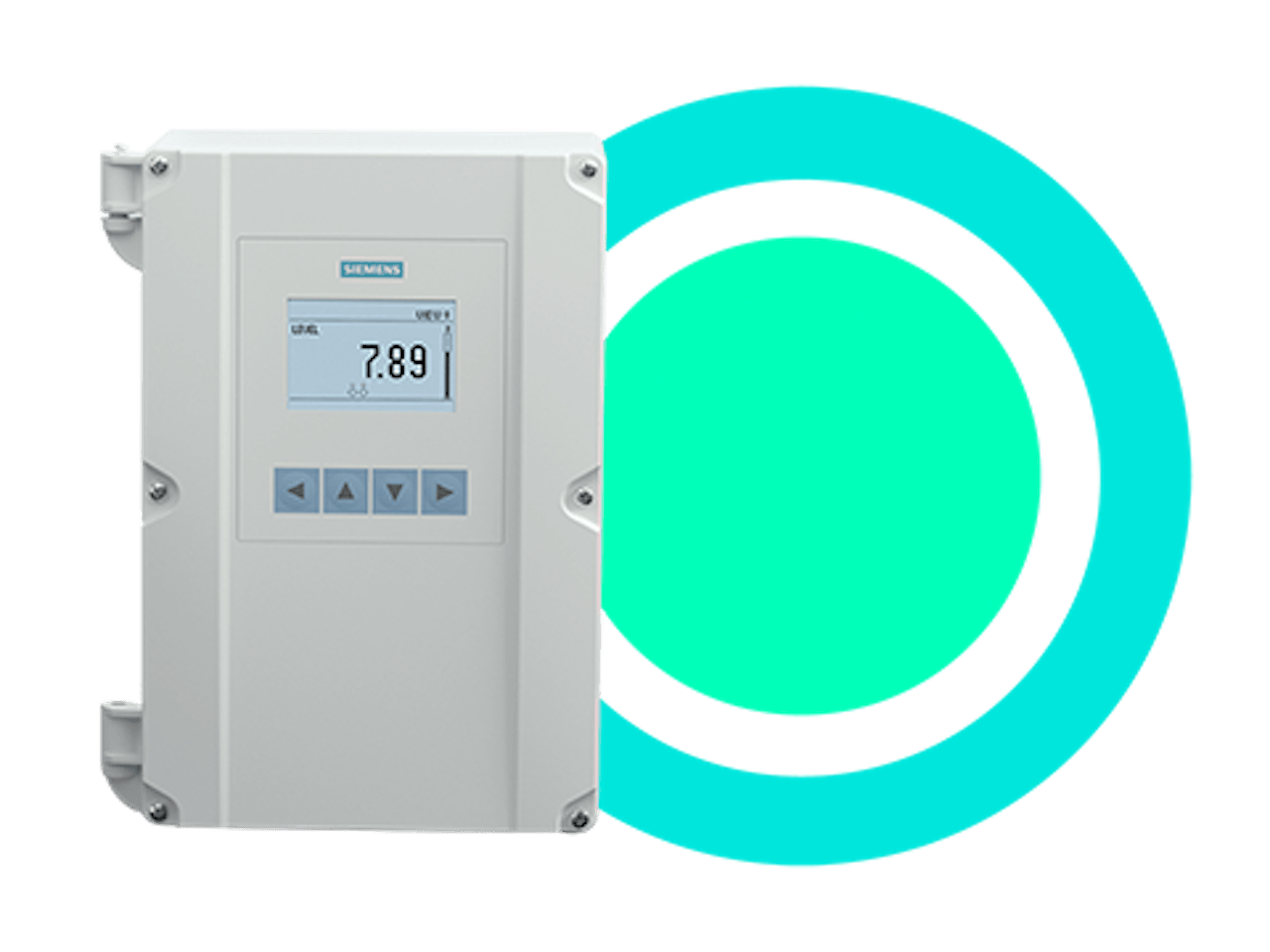

SITRANS LT500 Level Flow and Pump Controller Technical Data and Engineering Selection Guide
SITRANS LT500 Level Flow and Pump Controller is supplied by SANTAN for new projects, installed-base replacement and complete model-code review. Use the verified product-family data below for preliminary selection and quotation preparation.
Verified Technical Specifications
| Measurements | Level, distance, space, volume, differential, average, head and open-channel flow |
|---|---|
| Input platforms | mA/HART variants and ultrasonic-transducer variants |
| Outputs | Up to three 4–20 mA outputs and six programmable relays, configuration dependent |
| Communications | HART, Modbus RTU/TCP, PROFIBUS PA/DP, PROFINET and EtherNet/IP options |
| Control | Single- or dual-point monitoring, pump control, alarming and remote totalization |
| Diagnostics | IQ Guard/NE107 functions, event/data logging and parameter backup by configuration |
| Programming | Local HMI, application wizards and supported remote configuration tools |
| Typical applications | Wet wells, flumes/weirs, storage, hoppers, crusher bins and pump stations |
Published values describe the product family and are configuration dependent. Final range, materials, accuracy, pressure, temperature, approvals, communications and accessories must be checked against the selected Siemens article number and current documentation.
Best-Fit Application
Use LT500 when the project needs more than a local level indication: pump sequencing, relay logic, open-channel flow, dual-point monitoring or network integration. Confirm the input version and sensor compatibility before selecting communication cards and outputs.
Quotation and Selection Data Required
| Application | Continuous level, point level, open-channel flow or pump-control duty |
|---|---|
| Process | Medium, density, solids characteristics, buildup, agitation and foam |
| Geometry | Vessel/channel dimensions, measuring range, nozzle and mounting orientation |
| Design limits | Operating/design pressure and temperature; wetted-material requirements |
| Electrical | Power, 4–20 mA/relay/protocol, enclosure and hazardous-area requirements |
| Documentation | Required approvals, drawings, inspection and compliance certificates |
Related Engineering Resources
- Water and wastewater instrumentation
- SITRANS LH100 hydrostatic probe
- SITRANS LH300 level transmitter
- SITRANS LPS200 point-level switch
- Level measurement products
Official Manufacturer Reference
Siemens official SITRANS LT500 product page and current technical downloads
Request a Quote
Send the complete Siemens article number or model code, quantity and process data to sales@santanfluid.com. For a faster engineering review, use WhatsApp: +86 136 9022 3185 (China) or +62 823 1767 3750 (Indonesia). SANTAN will confirm the selectable configuration before quotation; no online payment is required.
Standard Technical Specification Summary
Use these fields for preliminary selection. Final values depend on the complete manufacturer model code and selected options.
| Model | sitrans-lt500-level-flow-pump-controller |
|---|---|
| Measurement Range | Configuration-dependent; confirm the required span and complete model code. |
| Accuracy | Configuration-dependent; confirm the accuracy class and calibrated range. |
| Process Connection | Configuration-dependent; confirm size, rating, standard and wetted materials. |
| Output Signal | Configuration-dependent; confirm analog, digital and communication requirements. |
| Certifications | Confirm hazardous-area, functional-safety, sanitary, marine or custody-transfer approvals by model code. |
| Application Industries | Application-dependent; confirm medium, process conditions and industry requirements. |
