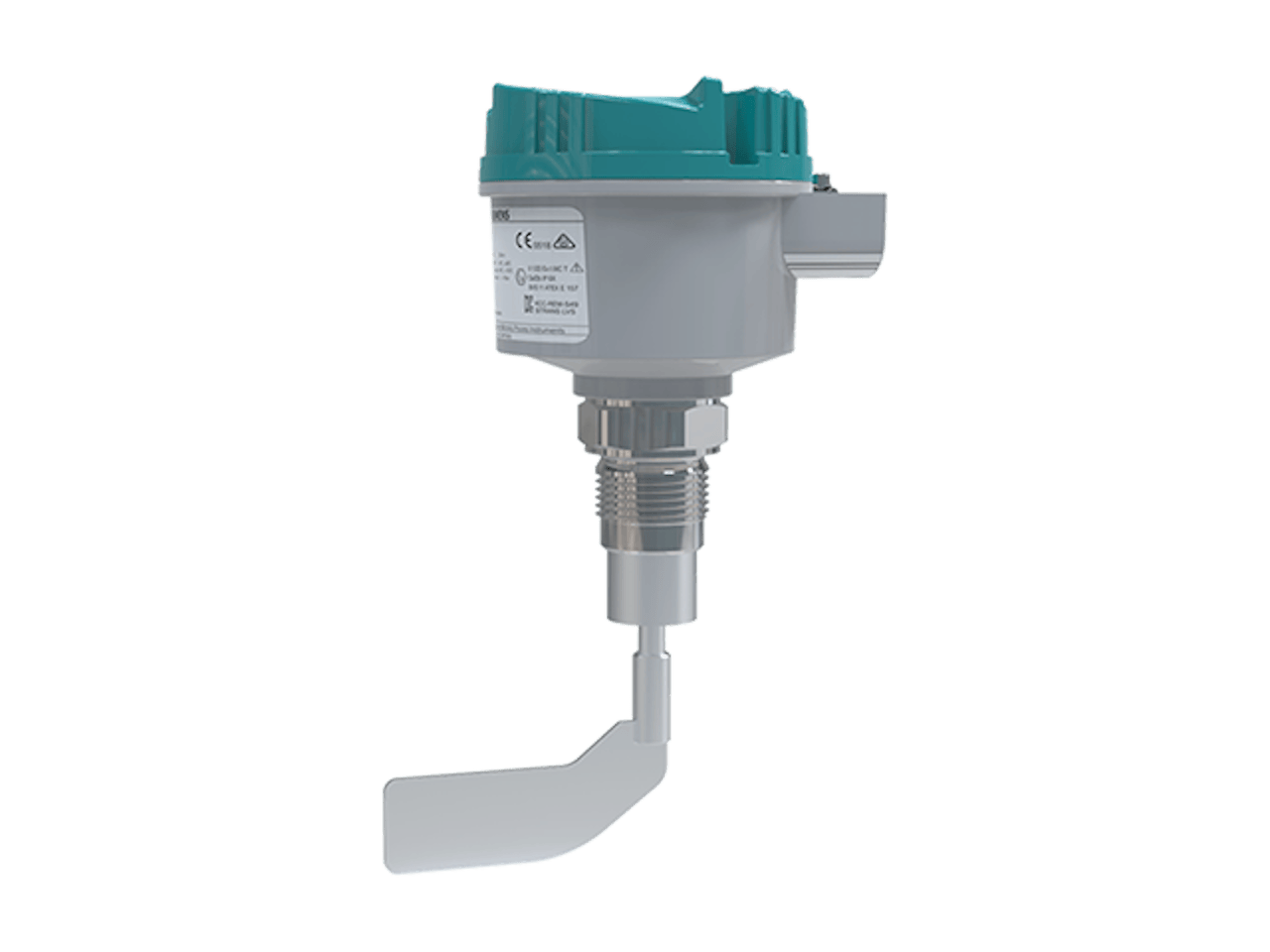

SITRANS LPS200 Rotary Paddle Level Switch Technical Data and Engineering Selection Guide
SITRANS LPS200 Rotary Paddle Level Switch is supplied by SANTAN for new projects, installed-base replacement and complete model-code review. Use the verified product-family data below for preliminary selection and quotation preparation.
Verified Technical Specifications
| Duty | High- or low-point level detection for bulk solids |
|---|---|
| Published insertion range | 100 mm to 10 m (4 in. to 30 ft), version dependent |
| Process temperature | -25 to +600 °C; higher-temperature designs on request |
| Process pressure | Up to 10 barg |
| Bulk density | Starting at 15 g/L with the applicable optional vane |
| Versions | Compact, rigid-extended, cable-extended and angle-extended |
| Protection features | Friction clutch, motor shutoff during alarm and multiple ingress barriers |
| Safety options | Fail-safe and SIL 2 configurations for eligible applications |
Published values describe the product family and are configuration dependent. Final range, materials, accuracy, pressure, temperature, approvals, communications and accessories must be checked against the selected Siemens article number and current documentation.
Best-Fit Application
Use LPS200 for powder, granule and bulk-solid point detection after checking bulk density, particle size, buildup, mechanical load and mounting position. Select the paddle, extension, process connection and fail-safe action for the real material.
Quotation and Selection Data Required
| Application | Continuous level, point level, open-channel flow or pump-control duty |
|---|---|
| Process | Medium, density, solids characteristics, buildup, agitation and foam |
| Geometry | Vessel/channel dimensions, measuring range, nozzle and mounting orientation |
| Design limits | Operating/design pressure and temperature; wetted-material requirements |
| Electrical | Power, 4–20 mA/relay/protocol, enclosure and hazardous-area requirements |
| Documentation | Required approvals, drawings, inspection and compliance certificates |
Related Engineering Resources
- SITRANS LT500 controller
- SITRANS LH100 liquid-level probe
- SITRANS LH300 liquid-level transmitter
- Level measurement products
Official Manufacturer Reference
Siemens official SITRANS LPS200 product page and current technical downloads
Request a Quote
Send the complete Siemens article number or model code, quantity and process data to sales@santanfluid.com. For a faster engineering review, use WhatsApp: +86 136 9022 3185 (China) or +62 823 1767 3750 (Indonesia). SANTAN will confirm the selectable configuration before quotation; no online payment is required.
Standard Technical Specification Summary
Use these fields for preliminary selection. Final values depend on the complete manufacturer model code and selected options.
| Model | sitrans-lps200-rotary-paddle-level-switch |
|---|---|
| Measurement Range | Configuration-dependent; confirm the required span and complete model code. |
| Accuracy | Configuration-dependent; confirm the accuracy class and calibrated range. |
| Process Connection | Configuration-dependent; confirm size, rating, standard and wetted materials. |
| Output Signal | Configuration-dependent; confirm analog, digital and communication requirements. |
| Certifications | Confirm hazardous-area, functional-safety, sanitary, marine or custody-transfer approvals by model code. |
| Application Industries | Application-dependent; confirm medium, process conditions and industry requirements. |
