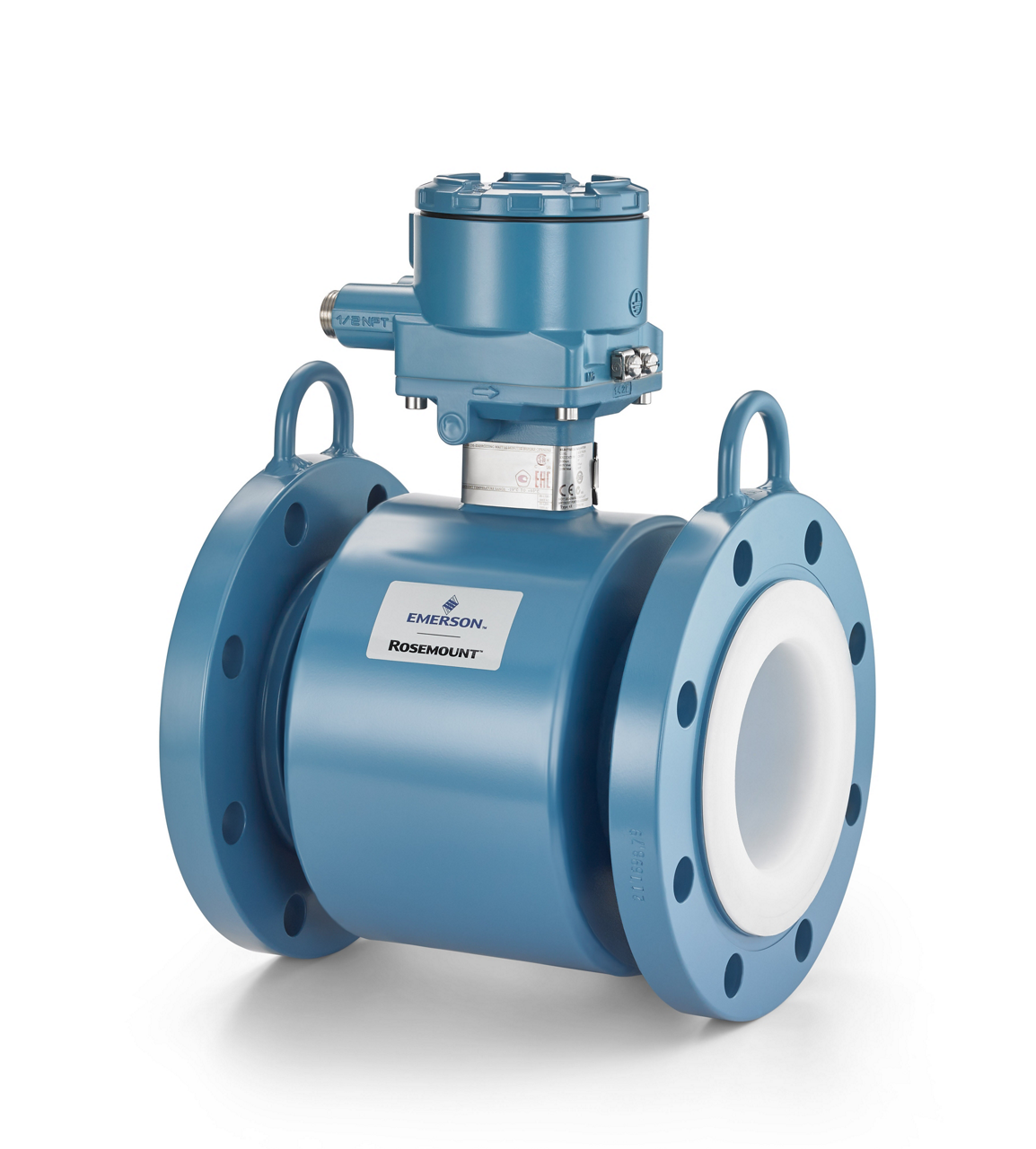

Rosemount 8705 Flanged Magnetic Flow Meter Sensor Technical Data and Selection Guide
Rosemount 8705 Flanged Magnetic Flow Meter Sensor is a commonly specified Rosemount instrument for industrial pipeline, process automation and replacement projects. SANTAN provides model-code checking, technical document review and export project support.
Verified Technical Specifications
| Brand / model | Rosemount 8705 |
|---|---|
| Measured variable / service | Conductive-liquid flow |
| Accuracy / performance | System/transmitter dependent |
| Range / line size | 0.5–36 in. (15–900 mm) |
| Principle / mounting | Obstructionless flanged magnetic sensor |
| Output / communication | Compatible Rosemount 8700 transmitters |
| Materials / approvals / lifecycle | Multiple liner and electrode materials |
Values describe the product family. Final ratings, materials, certifications and accuracy depend on the complete order code. Confirm the latest official datasheet.
Typical Applications
- Oil and gas pipelines and tank farms
- Chemical and petrochemical processing
- Power, steam and utility systems
- Water and wastewater treatment
- OEM skids and plant maintenance
Selection Information Required
| Process | Medium, density, viscosity or conductivity, pressure and temperature |
|---|---|
| Measurement | Minimum, normal and maximum range or flow; required accuracy |
| Mechanical | Pipe size, flange standard, connection and wetted materials |
| Electrical | Power, output, protocol, enclosure and hazardous approval |
Related Products and Solutions
- Rosemount 3051 Pressure Transmitter
- Rosemount 644 Temperature Transmitter
- All process instrumentation
- Industry solutions
Official Reference
Emerson official documentation
Request a Quote
Send the model code, quantity and process data to sales@santanfluid.com. WhatsApp +86 136 9022 3185 or +62 823 1767 3750. No online payment is required.
Standard Technical Specification Summary
Use these fields for preliminary selection. Final values depend on the complete manufacturer model code and selected options.
| Model | RM-8705 |
|---|---|
| Measurement Range | Configuration-dependent; confirm the required span and complete model code. |
| Accuracy | Configuration-dependent; confirm the accuracy class and calibrated range. |
| Process Connection | Configuration-dependent; confirm size, rating, standard and wetted materials. |
| Output Signal | Configuration-dependent; confirm analog, digital and communication requirements. |
| Certifications | Confirm hazardous-area, functional-safety, sanitary, marine or custody-transfer approvals by model code. |
| Application Industries | Application-dependent; confirm medium, process conditions and industry requirements. |
