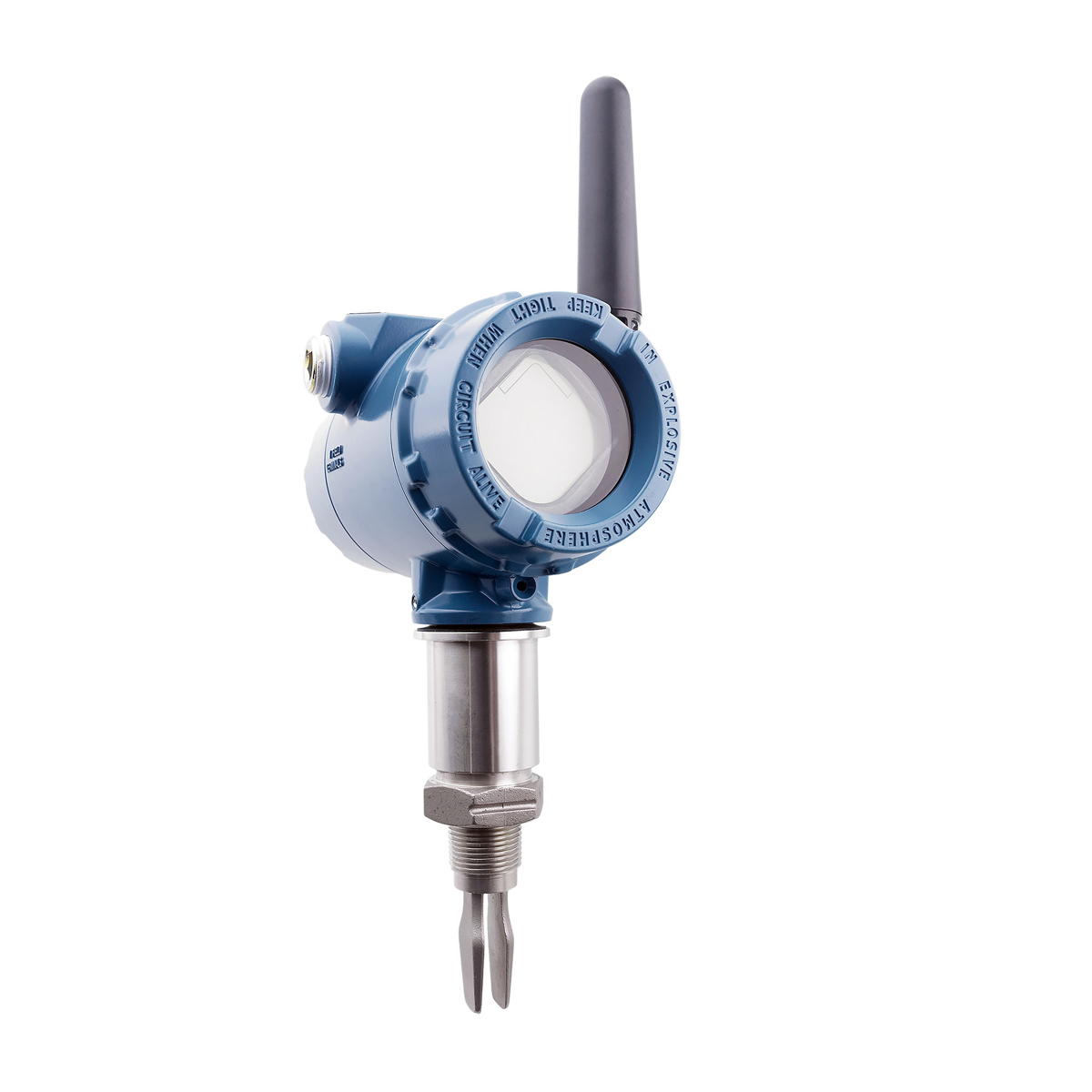

Rosemount 2160 Wireless Vibrating Fork Level Detector Technical Data and Engineering Selection Guide
Rosemount 2160 Wireless Vibrating Fork Level Detector is supplied by SANTAN for new projects, installed-base replacement and complete model-code review. The verified information below supports preliminary engineering selection and quotation preparation.
Verified Product-Family Specifications
| Measurement principle | Vibrating-fork wet/dry point-level detection |
|---|---|
| Media | Compatible process liquids |
| Communication | WirelessHART status and diagnostic transmission |
| Typical duties | High/low alarms, overfill protection and pump dry-run control |
| Battery life | Published up to 10 years at a one-minute update rate, application dependent |
| Diagnostics | Self-checking and enhanced fork/process diagnostics |
| Wetted options | Corrosion-resistant materials including Alloy C-276 options |
| Installation | Side or top mounting at the required switch point; verify fork orientation and clearance |
Published values describe the product family and are configuration dependent. Final range, accuracy, materials, pressure, temperature, approvals, communications and accessories must be checked against the selected Emerson/Rosemount model code and current documentation.
Best-Fit Application
Use the 2160 to add dependable liquid point-level alarms where wiring is expensive or impractical. Confirm liquid density/viscosity, coating risk, switch duty, process connection, wireless network design, update rate and safety requirements.
Quotation and Selection Data Required
| Application | Continuous level, interface, open-channel flow, alarm or overfill duty |
|---|---|
| Process | Liquid/solid properties, dielectric constant, density, viscosity, foam, dust and buildup |
| Geometry | Measuring range, tank/silo dimensions, nozzle, obstructions and mounting position |
| Design limits | Operating/design pressure and temperature; wetted-material requirements |
| Electrical | Power, wired/wireless output, update rate, enclosure and hazardous-area requirements |
| Compliance | SIL, hygienic, custody-transfer, drinking-water or other project approvals |
Related Engineering Resources
- Level solutions for tanks, reactors and silos
- SIL, IP rating and material selection
- Rosemount 3308 wireless continuous level
- Rosemount 2501 solids point-level switch
- How to prepare an instrument inquiry
- Level measurement products
Official Manufacturer Reference
Emerson official Rosemount 2160 product page and current technical downloads
Request a Quote
Send the complete Rosemount model code, quantity and process data to sales@santanfluid.com. For a faster engineering review, use WhatsApp: +86 136 9022 3185 (China) or +62 823 1767 3750 (Indonesia). SANTAN will confirm the selectable configuration before quotation; no online payment is required.
Standard Technical Specification Summary
Use these fields for preliminary selection. Final values depend on the complete manufacturer model code and selected options.
| Model | Rosemount 2160 Wireless Vibrating Fork Level Detector |
|---|---|
| Measurement Range | Configuration-dependent; confirm the required span and complete model code. |
| Accuracy | Configuration-dependent; confirm the accuracy class and calibrated range. |
| Process Connection | Configuration-dependent; confirm size, rating, standard and wetted materials. |
| Output Signal | Configuration-dependent; confirm analog, digital and communication requirements. |
| Certifications | Confirm hazardous-area, functional-safety, sanitary, marine or custody-transfer approvals by model code. |
| Application Industries | Application-dependent; confirm medium, process conditions and industry requirements. |
