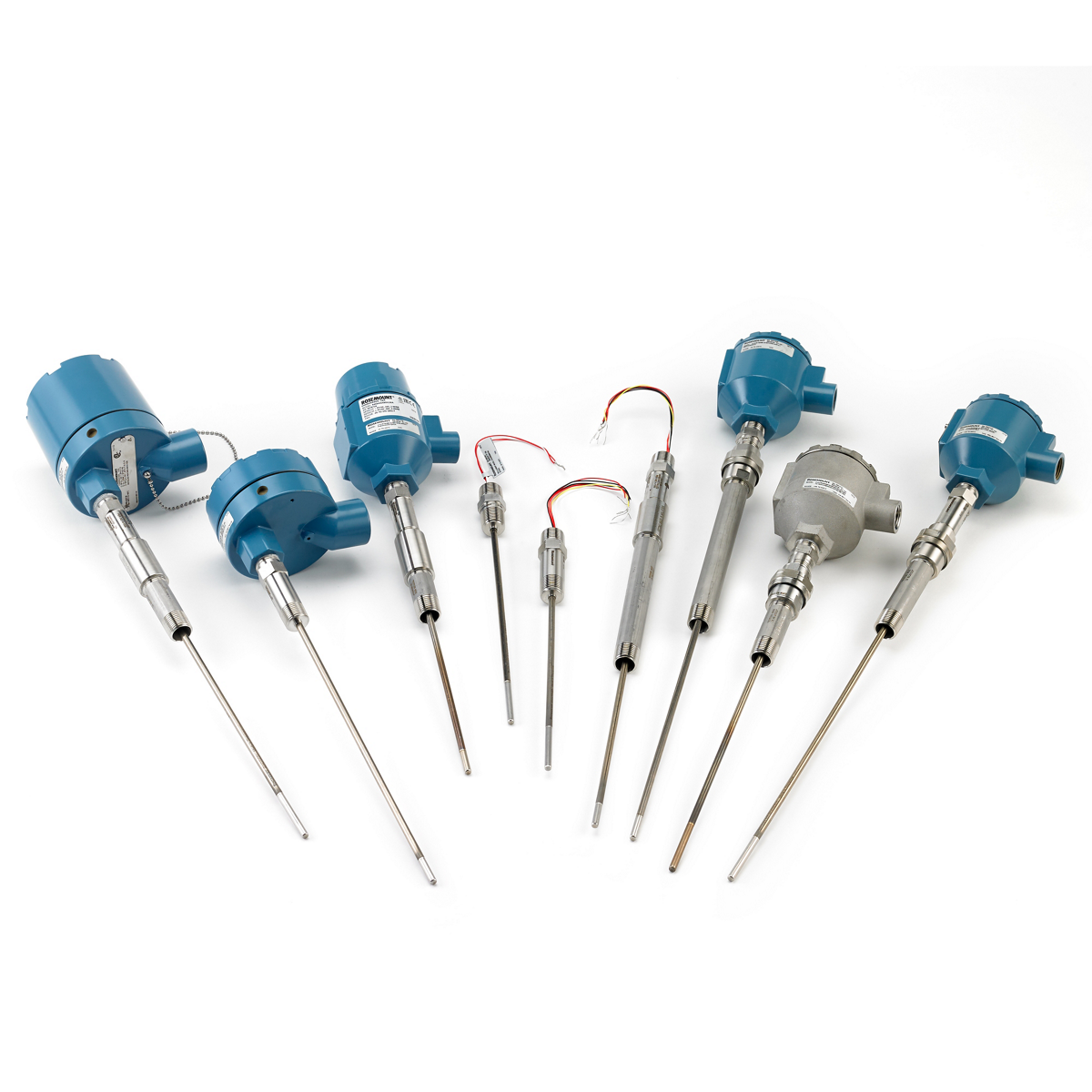

Rosemount 214C Temperature Sensor Technical Data and Engineering Selection Guide
Rosemount 214C Temperature Sensor is supplied by SANTAN for new projects, installed-base replacement and complete model-code review. The verified information below supports preliminary engineering selection and quotation preparation.
Verified Product-Family Specifications
| RTD option | Pt100 thin-film or wire-wound, single or dual element |
|---|---|
| RTD temperature envelope | Published sensor-type range from -196 to +600 °C, element dependent |
| Thermocouple options | Type J, K or T; grounded or ungrounded; single or dual element |
| Thermocouple envelope | Published sensor-type endpoints from -196 to +1200 °C, type dependent |
| Accuracy | IEC/ASTM tolerance choices and optional Class A RTD configurations |
| Construction | 1/4-in. mineral-insulated sheath with configurable insertion and mounting styles |
| Materials | 316 stainless-steel sheath for standard RTD offerings; verify every selected assembly |
| Assembly options | Connection heads, extensions, thermowells and transmitter-sensor matching options |
Published values describe the product family and are configuration dependent. Final range, accuracy, materials, pressure, temperature, approvals, communications and accessories must be checked against the selected Emerson/Rosemount model code and current documentation.
Best-Fit Application
Use the 214C as a configurable sensing element or complete temperature assembly. Choose RTD versus thermocouple by range, accuracy, vibration and response requirements, then verify insertion length, sheath, thermowell wake-frequency suitability and transmitter matching.
Quotation and Selection Data Required
| Measurement | Minimum, normal and maximum temperature; required accuracy and response time |
|---|---|
| Sensor | RTD or thermocouple type, single/dual element and calibration requirement |
| Mechanical | Insertion length, process connection, thermowell and mounting arrangement |
| Materials | Sheath/thermowell material and process compatibility |
| Electrical | Output/protocol, display, diagnostics, enclosure and hazardous-area requirements |
| Documentation | Calibration points, certificates, drawings and safety documentation |
Related Engineering Resources
- RTD vs thermocouple selection guide
- Steam-pipeline instrumentation guide
- Rosemount 3144S temperature transmitter
- How to prepare an instrument inquiry
- Temperature measurement products
Official Manufacturer Reference
Emerson official Rosemount 214C October 2025 product data sheet
Request a Quote
Send the complete Rosemount model code, quantity and process data to sales@santanfluid.com. For a faster engineering review, use WhatsApp: +86 136 9022 3185 (China) or +62 823 1767 3750 (Indonesia). SANTAN will confirm the selectable configuration before quotation; no online payment is required.
Standard Technical Specification Summary
Use these fields for preliminary selection. Final values depend on the complete manufacturer model code and selected options.
| Model | Rosemount 214C Temperature Sensor |
|---|---|
| Measurement Range | Configuration-dependent; confirm the required span and complete model code. |
| Accuracy | IEC/ASTM tolerance choices and optional Class A RTD configurations |
| Process Connection | Configuration-dependent; confirm size, rating, standard and wetted materials. |
| Output Signal | Configuration-dependent; confirm analog, digital and communication requirements. |
| Certifications | Confirm hazardous-area, functional-safety, sanitary, marine or custody-transfer approvals by model code. |
| Application Industries | Application-dependent; confirm medium, process conditions and industry requirements. |
