Description
Product Overview

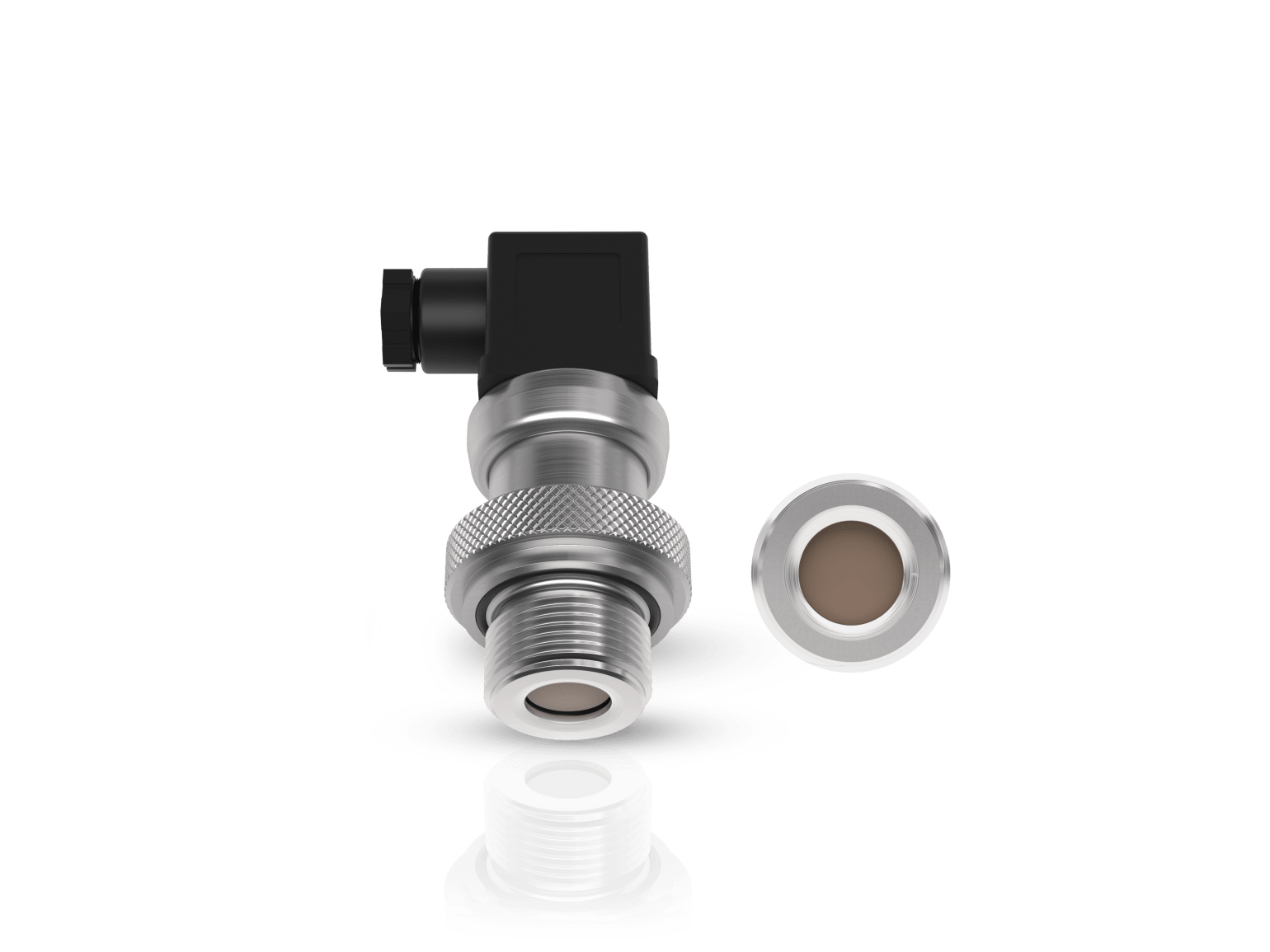

The KROHNE OPTIBAR PC 1010 uses a ceramic diaphragm for general pressure and hydrostatic level measurement. Its robust, corrosion-resistant measuring element suits water, wastewater and compatible process liquids.
KROHNE Product-Family Information
This page summarizes the engineering scope of the KROHNE OPTIBAR PC 1010 Ceramic Pressure Transmitter. Final selection must be verified against current KROHNE technical documentation, process data and required approvals before ordering.
Detailed Technical and Selection Parameters
| Product model | OPTIBAR PC 1010 Ceramic Pressure Transmitter |
|---|---|
| Measurement principle | Ceramic-diaphragm pressure measurement |
| Typical service | Liquids and gases compatible with ceramic and seal materials |
| Installation concept | Direct threaded or suitable process connection |
| Communication / output | Analog output selected for the control or monitoring system |
| Performance guidance | Range and accuracy depend on selected ceramic measuring cell |
| Materials and configuration | Ceramic diaphragm with configurable connection and gasket materials |
| Manufacturer / brand | KROHNE |
| Model confirmation | Final specifications depend on the complete ordered model code and process data |
| Commercial support | Santan Fluid provides model review, quotation and international supply support |
Typical Industry Applications
- Water pressure monitoring
- Wastewater systems
- Hydrostatic level
- Utility and OEM equipment
Information Required for Model Selection
- Pressure or level range
- Vacuum and overpressure conditions
- Connection and seal material
- Process temperature
- Output and ingress protection
Engineering Notes
Selection should consider process conditions, wetted-material compatibility, installation geometry, communication protocol, diagnostics and hazardous-area requirements. Product names and trademarks belong to their respective owners.
Request Model Confirmation and Quotation
Send the process data sheet, required model code or application description to our instrumentation team.
Email: sales@santanfluid.com
WhatsApp: +8613690223185
Standard Technical Specification Summary
Use these fields for preliminary selection. Final values depend on the complete manufacturer model code and selected options.
| Model | KROHNE OPTIBAR PC 1010 Ceramic Pressure Transmitter |
|---|---|
| Measurement Range | Gauge pressure from 0.1 to 40 bar; process temperature up to +125 deg C |
| Accuracy | Measurement error up to +/-0.25%; long-term stability approximately +/-0.1% per year |
| Process Connection | Male G1/4, G1/2 or G3/4 threads; stainless-steel, PVDF or PP-HT process connection options |
| Output Signal | Compact capacitive ceramic measuring cell with analog transmitter output selected by ordered electrical version |
| Certifications | ATEX and IECEx intrinsically safe Zone 0 options; DVGW drinking-water and IP68 versions available |
| Application Industries | Water and wastewater; pump protection; chemical liquids; abrasive media; pressure and hydrostatic level |
