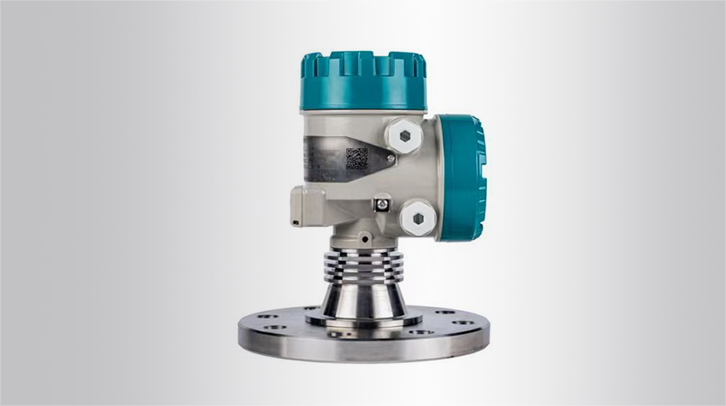

Chuanyi MPS7000 Series High-Frequency FMCW Radar Level Meter Technical Data and Selection Guide
Chuanyi MPS7000 Series High-Frequency FMCW Radar Level Meter is supplied by SANTAN for industrial process control, pipeline instrumentation and maintenance replacement projects.
Product Overview
Chuanyi MPS7000 is a high-frequency FMCW radar level family using approximately 120-130 GHz technology for continuous level measurement. The narrow beam supports measurement in vessels with internal structures and in demanding dust, vapor or long-range applications.
Chuanyi Product-Family Information
Manufacturer family information describes a beam angle as narrow as about 1 degree, measurement range up to 120 m, a small blind zone and high process-temperature capability in suitable configurations. Final limits depend on antenna, process connection, medium, vessel geometry and ordered model.
Detailed Technical Parameters
| Parameter | Selection Guidance |
|---|---|
| Measurement principle | Frequency-modulated continuous-wave radar, top-mounted non-contact measurement |
| Operating band | High-frequency 120-130 GHz family, model dependent |
| Measured media | Liquids or bulk solids according to antenna and configuration |
| Range | Up to 120 m in suitable applications; verify dielectric, surface and installation conditions |
| Beam angle | Very narrow beam, approximately 1 degree in applicable configurations |
| Blind distance | Application/model dependent; optimized configurations may be approximately 0.1 m |
| Process temperature | High-temperature versions available; connection and cooling design must be confirmed |
| Process connection | Thread, flange or application-specific mounting arrangement |
| Output | 4-20 mA/HART or other model-specific communication |
| Installation | Avoid false echoes, filling stream, excessive nozzle length and direct internal obstructions |
Typical Industry Applications
Tall silos, powder and granular solids, chemical tanks, reactors, storage vessels, high-temperature process equipment, dusty bulk-material handling and water applications.
Information Required for Model Selection
Medium and dielectric behavior, liquid/solid, range, vessel height and diameter, nozzle, internals, agitator, foam/dust/vapor, process pressure and temperature, antenna, connection, output, approvals and required accuracy.
Engineering Notes
- Confirm the complete model code and nameplate data before ordering a replacement.
- Verify process compatibility, pressure/temperature limits and installation conditions against the approved manufacturer datasheet.
- Final specifications vary by model suffix, material, connection, signal and certification option.
- SANTAN can review datasheets, project tags and replacement requirements before quotation.
Request Technical Confirmation and Quotation
Send the model, quantity, nameplate photo or process data to sales@santanfluid.com or contact WhatsApp +86 136 9022 318. No online payment is required.
Standard Technical Specification Summary
Use these fields for preliminary selection. Final values depend on the complete manufacturer model code and selected options.
| Model | Chuanyi MPS7000 Series High-Frequency FMCW Radar Level Meter |
|---|---|
| Measurement Range | Configuration-dependent; confirm the required span and complete model code. |
| Accuracy | Configuration-dependent; confirm the accuracy class and calibrated range. |
| Process Connection | Configuration-dependent; confirm size, rating, standard and wetted materials. |
| Output Signal | Configuration-dependent; confirm analog, digital and communication requirements. |
| Certifications | Confirm hazardous-area, functional-safety, sanitary, marine or custody-transfer approvals by model code. |
| Application Industries | Application-dependent; confirm medium, process conditions and industry requirements. |
