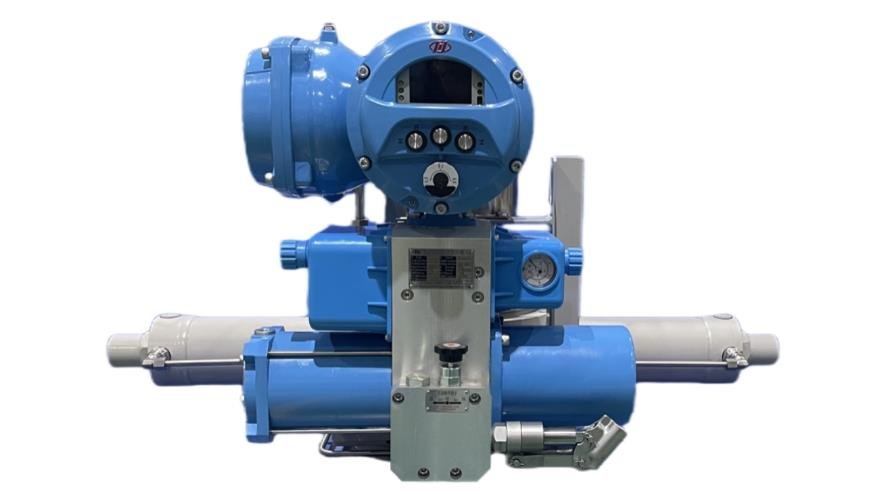

Chuanyi Intelligent Electric Actuator (C/M/N/R Series) Technical Data and Selection Guide
Chuanyi Intelligent Electric Actuator (C/M/N/R Series) is supplied by SANTAN for industrial process control, pipeline instrumentation and maintenance replacement projects.
Product Overview
Chuanyi C, M, R and N actuator families provide local and remote valve operation for on-off and modulating control in industrial automation. The family covers electro-hydraulic and electric actuator arrangements for different valve motions and service requirements.
Chuanyi Product-Family Information
C series emphasizes fast, precise and stable electro-hydraulic control. M series is an intelligent electric actuator family for multi-turn, part-turn and linear valve duties. R series is intended for frequently modulating service. N series uses mechanical torque and travel control and includes configurations for nuclear power K3 environments.
Detailed Technical Parameters
| Parameter | Selection Guidance |
|---|---|
| Actuator family | C / M / R / N series; final selection by valve duty and project specification |
| Valve motion | Multi-turn, part-turn or linear, depending on series and output mechanism |
| Control mode | Local and remote on-off control or continuous modulating control |
| Valve compatibility | Gate, globe, butterfly, ball valves, dampers and linear control valves by configuration |
| Sizing inputs | Required torque/thrust, operating time, valve stroke/turns and safety factor |
| Power and signal | Supply voltage, open/close command, analog modulation and communication options by model |
| Feedback | Position indication, limit/torque status and optional remote feedback |
| Environment | Enclosure, ambient temperature, corrosion and hazardous-area requirements to be confirmed |
| Fail action | Stay-put, spring return or electro-hydraulic safety function where available |
| Accessories | Mounting flange, drive bush, handwheel, local control station and position interface |
Typical Industry Applications
Gate and globe valve automation; butterfly and ball valve isolation; boiler and utility dampers; water-treatment valve stations; petrochemical process lines; power, metallurgy and municipal water projects.
Information Required for Model Selection
Valve type and size, required torque or thrust, travel/turns, operating frequency, duty cycle, operating time, fail position, power supply, control signal, communication protocol, enclosure, hazardous-area approval and mounting interface.
Engineering Notes
- Confirm the complete model code and nameplate data before ordering a replacement.
- Verify process compatibility, pressure/temperature limits and installation conditions against the approved manufacturer datasheet.
- Final specifications vary by model suffix, material, connection, signal and certification option.
- SANTAN can review datasheets, project tags and replacement requirements before quotation.
Request Technical Confirmation and Quotation
Send the model, quantity, nameplate photo or process data to sales@santanfluid.com or contact WhatsApp +86 136 9022 318. No online payment is required.
Standard Technical Specification Summary
Use these fields for preliminary selection. Final values depend on the complete manufacturer model code and selected options.
| Model | Chuanyi Intelligent Electric Actuator (C/M/N/R Series) |
|---|---|
| Measurement Range | Configuration-dependent; confirm the required span and complete model code. |
| Accuracy | Configuration-dependent; confirm the accuracy class and calibrated range. |
| Process Connection | Configuration-dependent; confirm size, rating, standard and wetted materials. |
| Output Signal | Configuration-dependent; confirm analog, digital and communication requirements. |
| Certifications | Confirm hazardous-area, functional-safety, sanitary, marine or custody-transfer approvals by model code. |
| Application Industries | Application-dependent; confirm medium, process conditions and industry requirements. |
