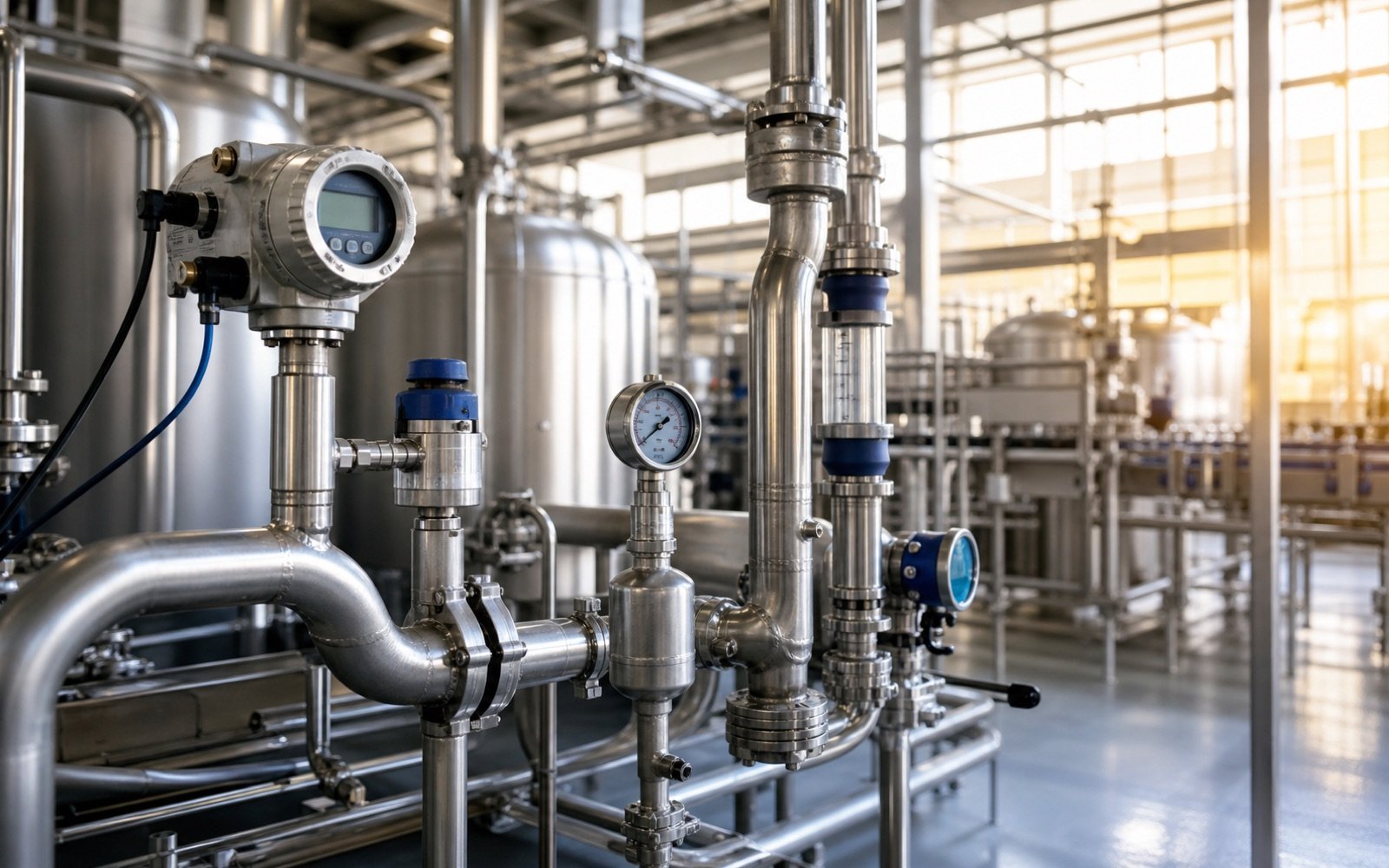

Food & Beverage Instrumentation Solutions
Instrumentation for hygienic food and beverage production must provide reliable pressure, temperature, flow and level data while supporting cleanability, product safety and repeatable batch quality.
Key Application Areas
- Raw-material receiving and storage
- Mixing, blending and dosing
- Pasteurization, sterilization and heat treatment
- CIP/SIP supply and return
- Filling and packaging lines
Critical Measurement Points and Recommended Instruments
| Measurement | Recommended Instrument Types | Typical Locations |
|---|---|---|
| Pressure | Hygienic pressure gauges, flush-diaphragm transmitters and diaphragm seals | Tanks, filters, homogenizers and filling systems |
| Temperature | Fast-response RTDs and hygienic thermometers | Pasteurizers, heat exchangers and CIP circuits |
| Flow | Electromagnetic and Coriolis flowmeters | Water, ingredients, concentrates and dosing |
| Level | Radar, hydrostatic and magnetic level instruments | Storage tanks, process vessels and silos |
Engineering and Selection Priorities
- Hygienic connections and dead-space-free installation
- FDA/EC 1935/2004-compliant wetted materials where required
- CIP/SIP temperature cycles and wash-down protection
- Fast response for batch and thermal processes
How Santan Fluid Supports Your Project
Our team supports instrument selection across pressure, temperature, flow, level, analytical and valve applications. We review process conditions, materials, installation, communication, certification and lifecycle requirements before quotation.
SEO topics: food beverage instrumentation, hygienic pressure gauge, sanitary flow meter, CIP temperature sensor.
Discuss Your Application
Send your process data sheet, P&ID, instrument list or application description for model review and quotation.
Email: sales@santanfluid.com
WhatsApp: +8613690223185
Analytical Instruments for Process Water and CIP Monitoring
Food and beverage plants may monitor pH or ORP in process utilities, water treatment, neutralisation and CIP return lines. Instrument selection must consider the medium, temperature, cleaning chemicals, installation assembly, calibration workflow and whether the measurement point contacts the finished product.
Compare the Memosens CPS11E digital pH sensor and the Yokogawa PH450G pH/ORP analyzer, then confirm sensor compatibility and required outputs before quotation.
Food & Beverage Process Instrumentation Measurement Points and Recommended Models
Use the matrix below to move from the application area to the measurement task and then to specific instrument models. Final model selection must confirm medium, range, accuracy, process connection, wetted materials, output, hazardous-area approval and installation conditions.
| Application / Measurement Point | Measurement Task | Recommended Product Models |
|---|---|---|
| Ingredient dosing and product transfer | Hygienic mass flow and batch repeatability | Endress+Hauser Proline Promass Q 300 Coriolis FlowmeterYokogawa ROTAMASS Total Insight Coriolis Flowmeter |
| Process vessels and storage tanks | Non-contact level and point-level overfill protection | Endress+Hauser Micropilot FMR43 Hygienic Radar SensorEndress+Hauser Liquiphant FTL63 Hygienic Point Level Switch |
| CIP and SIP temperature loops | Fast-response sanitary temperature measurement | Endress+Hauser iTHERM ModuLine TM411 Modular ThermometerKROHNE OPTITEMP TRA-H61 Hygienic RTD Temperature Sensor |
| Filters, skids and hygienic piping | Sanitary pressure and differential pressure monitoring | WIKA Model PG43SA-S Hygienic Diaphragm Pressure GaugeEndress+Hauser Cerabar PMC71B Pressure Transmitter |
