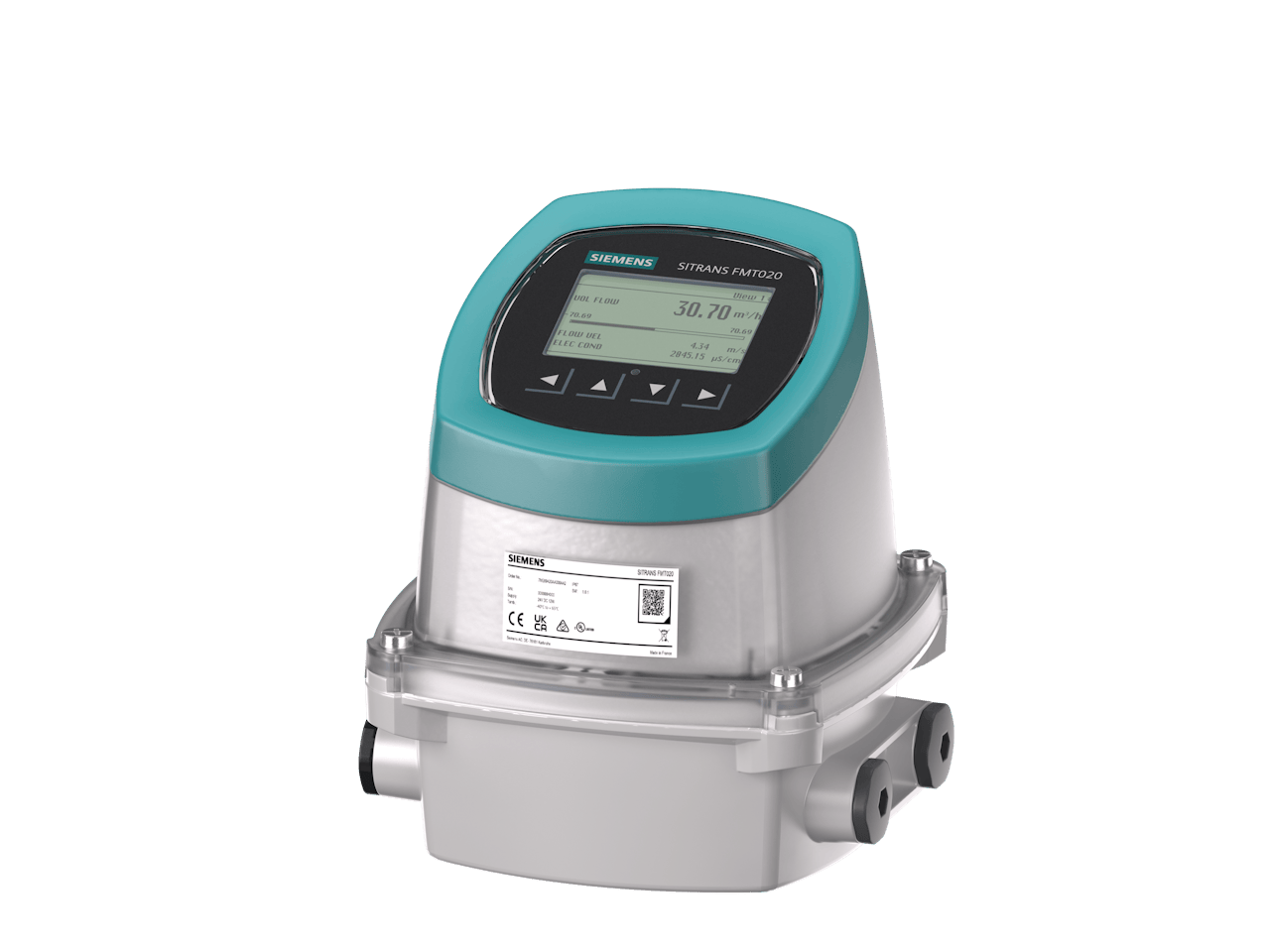

SITRANS FMT020 Electromagnetic Flow Transmitter Technical Data and Engineering Selection Guide
SITRANS FMT020 Electromagnetic Flow Transmitter is supplied by SANTAN for new projects, installed-base replacement and complete model-code review. Use the verified product-family data below for preliminary selection and quotation preparation.
Verified Technical Specifications
| Measured values | Volumetric flow, flow velocity and electrical conductivity |
|---|---|
| System accuracy | 0.4% of flow rate standard; optional calibration up to 0.2% with eligible sensors |
| Communications | HART, PROFINET, EtherNet/IP, Modbus RTU/TCP, PROFIBUS PA/DP and Bluetooth options |
| Outputs | Multifunction analog, pulse/frequency/status and relay options |
| الحماية | IP66/67 and NEMA 4X/6 polycarbonate enclosure |
| Power | 100–240 V AC or 12–42 V DC versions |
| Totalizers | Forward, reverse and net-flow totalizers |
| Diagnostics | Self-check, verification support, empty-pipe monitoring and data/configuration functions |
Published values describe the product family and are configuration dependent. Final range, materials, accuracy, pressure, temperature, approvals, communications and accessories must be checked against the selected Siemens article number and current documentation.
Best-Fit Application
Specify FMT020 as part of a complete Siemens magnetic-flow system, not as a standalone measurement guarantee. Confirm the paired sensor, compact or remote mounting, power, I/O modules, host protocol, cable length and hazardous-area approval.
Quotation and Selection Data Required
| متوسط | Liquid or gas, composition, conductivity, density and viscosity as applicable |
|---|---|
| Flow data | Minimum, normal and maximum flow; operating and reference conditions |
| Mechanical | Line size, schedule, connection standard, orientation and available straight run |
| Design limits | Operating/design pressure and temperature; wetted-material requirements |
| Electrical | Power, output/protocol, enclosure and hazardous-area requirements |
| Documentation | Required calibration, inspection, material and compliance certificates |
Related Engineering Resources
- Flowmeter installation checklist
- Magnetic flowmeter liner and electrode selection
- SITRANS FMS100 sensor
- SITRANS FMS300 sensor
- SITRANS FMS500 sensor
- Flow measurement products
Official Manufacturer Reference
Siemens official SITRANS FMT020 product page and current technical downloads
طلب عرض سعر
Send the complete Siemens article number or model code, quantity and process data to sales@santanfluid.com. For a faster engineering review, use WhatsApp: +86 136 9022 3185 (China) or +62 823 1767 3750 (Indonesia). SANTAN will confirm the selectable configuration before quotation; no online payment is required.
ملخص المواصفات الفنية القياسية
استخدم هذه الحقول للاختيار الأولي. تعتمد القيم النهائية على رمز نموذج المصنع الكامل والخيارات المحددة.
| النموذج | sitrans-fmt020-electromagnetic-flow-transmitter |
|---|---|
| نطاق القياس | يعتمد على التكوين؛ أكد النطاق المطلوب والكود النموذج الكامل. |
| الدقة | يعتمد على التكوين؛ أكد فئة الدقة والنطاق المعاير. |
| توصيلة العملية | يعتمد على التكوين؛ أكد الحجم والتصنيف والمعيار والمواد المبللة. |
| إشارة الخرج | يعتمد على التكوين؛ تأكيد متطلبات التناظري والرقمي والاتصالات. |
| الشهادات | أكد موافقات المناطق الخطرة والسلامة الوظيفية والصحية والبحرية أو نقل الحضانة برمز النموذج. |
| صناعات التطبيق | يعتمد على التطبيق؛ أكد الوسط وظروف العملية ومتطلبات الصناعة. |
