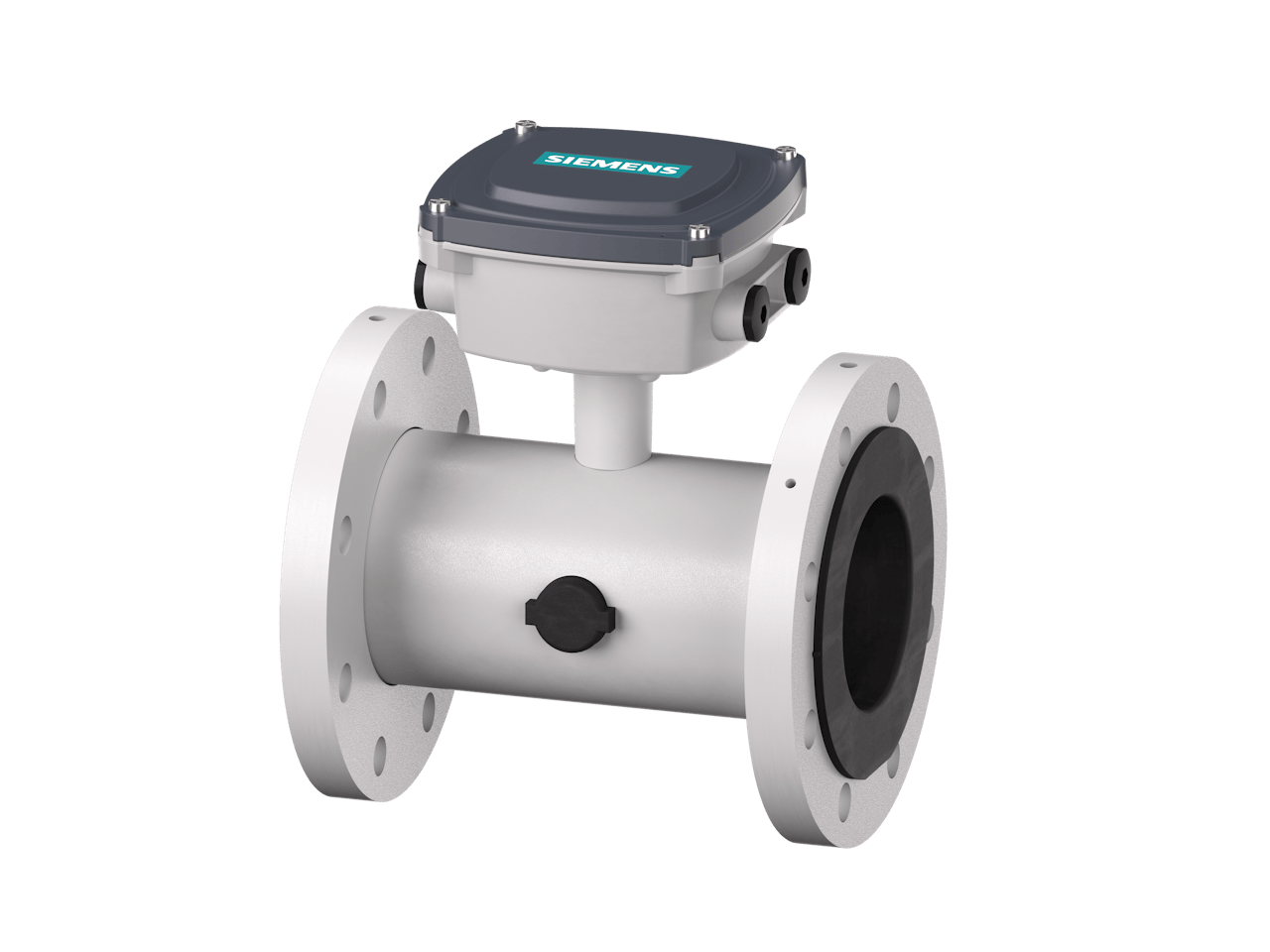

SITRANS FMS500 Electromagnetic Flow Sensor Technical Data and Engineering Selection Guide
SITRANS FMS500 Electromagnetic Flow Sensor is supplied by SANTAN for new projects, installed-base replacement and complete model-code review. Use the verified product-family data below for preliminary selection and quotation preparation.
Verified Technical Specifications
| Primary service | Conductive water and wastewater |
|---|---|
| Nominal size | DN 15–2000 (1/2–80 in.) |
| Published velocity range | 0–10 m/s |
| الدقة | 0.4% of rate standard; optional calibration up to 0.2% of rate |
| Operating pressure | Up to 40 bar, sensor size and flange dependent |
| Liner focus | Water-service hard-rubber/NBR and EPDM configurations |
| التثبيت | Compact or remote system configuration with the selected transmitter |
| System pairing | Pairs with SITRANS FMT020 as the SITRANS FM520 system |
Published values describe the product family and are configuration dependent. Final range, materials, accuracy, pressure, temperature, approvals, communications and accessories must be checked against the selected Siemens article number and current documentation.
Best-Fit Application
Use FMS500 for conductive water and wastewater lines where low-flow sensitivity, large sizes or water approvals are important. Confirm velocity at minimum flow, liner choice, burial/submersion needs, flange standard and empty-pipe risk.
Quotation and Selection Data Required
| متوسط | Liquid or gas, composition, conductivity, density and viscosity as applicable |
|---|---|
| Flow data | Minimum, normal and maximum flow; operating and reference conditions |
| Mechanical | Line size, schedule, connection standard, orientation and available straight run |
| Design limits | Operating/design pressure and temperature; wetted-material requirements |
| Electrical | Power, output/protocol, enclosure and hazardous-area requirements |
| Documentation | Required calibration, inspection, material and compliance certificates |
Related Engineering Resources
- Magnetic flowmeter liner and electrode selection
- Flowmeter installation checklist
- Water and wastewater instrumentation
- SITRANS FMT020 transmitter
- SITRANS FMS300 process sensor
- Flow measurement products
Official Manufacturer Reference
Siemens official SITRANS FMS500 product page and current technical downloads
طلب عرض سعر
Send the complete Siemens article number or model code, quantity and process data to sales@santanfluid.com. For a faster engineering review, use WhatsApp: +86 136 9022 3185 (China) or +62 823 1767 3750 (Indonesia). SANTAN will confirm the selectable configuration before quotation; no online payment is required.
ملخص المواصفات الفنية القياسية
استخدم هذه الحقول للاختيار الأولي. تعتمد القيم النهائية على رمز نموذج المصنع الكامل والخيارات المحددة.
| النموذج | sitrans-fms500-electromagnetic-flow-sensor |
|---|---|
| نطاق القياس | يعتمد على التكوين؛ أكد النطاق المطلوب والكود النموذج الكامل. |
| الدقة | 0.4% of rate standard; optional calibration up to 0.2% of rate |
| توصيلة العملية | يعتمد على التكوين؛ أكد الحجم والتصنيف والمعيار والمواد المبللة. |
| إشارة الخرج | يعتمد على التكوين؛ تأكيد متطلبات التناظري والرقمي والاتصالات. |
| الشهادات | أكد موافقات المناطق الخطرة والسلامة الوظيفية والصحية والبحرية أو نقل الحضانة برمز النموذج. |
| صناعات التطبيق | يعتمد على التطبيق؛ أكد الوسط وظروف العملية ومتطلبات الصناعة. |
