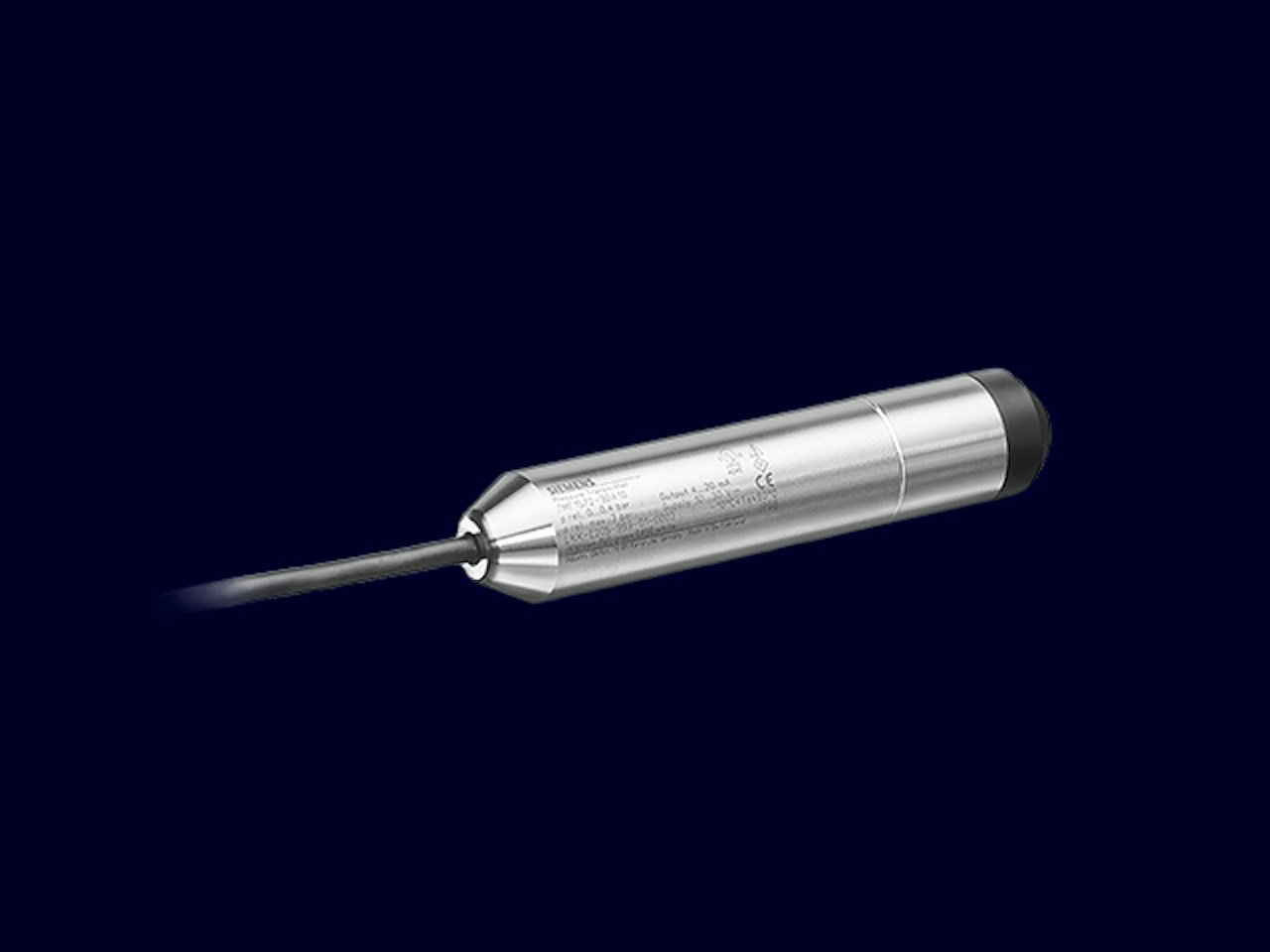

SITRANS LH100 Hydrostatic Level Probe Technical Data and Engineering Selection Guide
SITRANS LH100 Hydrostatic Level Probe is supplied by SANTAN for new projects, installed-base replacement and complete model-code review. Use the verified product-family data below for preliminary selection and quotation preparation.
Verified Technical Specifications
| المتغير المقاس | Hydrostatic liquid level |
|---|---|
| Standard measuring ranges | 0–3 to 20 mH₂O (0–0.3 to 2 bar) |
| Output | 4–20 mA, 2-wire |
| Typical accuracy | 0.3% of full scale under reference conditions |
| Construction | Stainless-steel housing with ceramic measuring diaphragm |
| Cable | Vented cable with integrated humidity filter |
| الحماية | IP68 according to IEC 60529 |
| Approvals | Drinking-water and optional ATEX/IECEx configurations |
Published values describe the product family and are configuration dependent. Final range, materials, accuracy, pressure, temperature, approvals, communications and accessories must be checked against the selected Siemens article number and current documentation.
Best-Fit Application
Use LH100 for straightforward hydrostatic measurement in open water and wastewater applications. Verify liquid density, cable length, mounting depth, atmospheric venting, lightning/surge protection and material compatibility.
Quotation and Selection Data Required
| التطبيق | Continuous level, point level, open-channel flow or pump-control duty |
|---|---|
| Process | Medium, density, solids characteristics, buildup, agitation and foam |
| Geometry | Vessel/channel dimensions, measuring range, nozzle and mounting orientation |
| Design limits | Operating/design pressure and temperature; wetted-material requirements |
| Electrical | Power, 4–20 mA/relay/protocol, enclosure and hazardous-area requirements |
| Documentation | Required approvals, drawings, inspection and compliance certificates |
Related Engineering Resources
- Water and wastewater instrumentation
- SITRANS LH300 for demanding duties
- SITRANS LT500 controller
- Level measurement products
Official Manufacturer Reference
Siemens official SITRANS LH100 product page and current technical downloads
طلب عرض سعر
Send the complete Siemens article number or model code, quantity and process data to sales@santanfluid.com. For a faster engineering review, use WhatsApp: +86 136 9022 3185 (China) or +62 823 1767 3750 (Indonesia). SANTAN will confirm the selectable configuration before quotation; no online payment is required.
ملخص المواصفات الفنية القياسية
استخدم هذه الحقول للاختيار الأولي. تعتمد القيم النهائية على رمز نموذج المصنع الكامل والخيارات المحددة.
| النموذج | sitrans-lh100-hydrostatic-level-probe |
|---|---|
| نطاق القياس | يعتمد على التكوين؛ أكد النطاق المطلوب والكود النموذج الكامل. |
| الدقة | يعتمد على التكوين؛ أكد فئة الدقة والنطاق المعاير. |
| توصيلة العملية | يعتمد على التكوين؛ أكد الحجم والتصنيف والمعيار والمواد المبللة. |
| إشارة الخرج | يعتمد على التكوين؛ تأكيد متطلبات التناظري والرقمي والاتصالات. |
| الشهادات | Drinking-water and optional ATEX/IECEx configurations |
| صناعات التطبيق | يعتمد على التطبيق؛ أكد الوسط وظروف العملية ومتطلبات الصناعة. |
