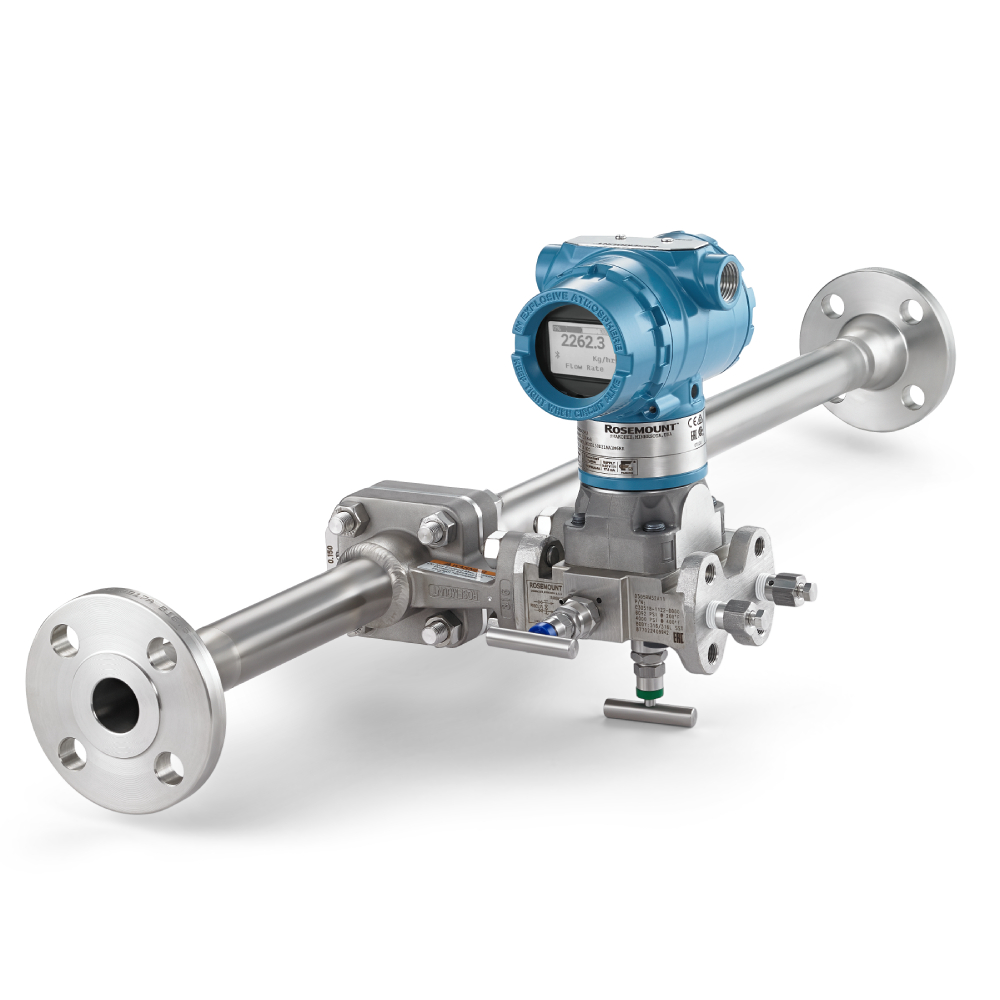

Rosemount 3051CFP Integral Orifice Flow Meter Technical Data and Engineering Selection Guide
Rosemount 3051CFP Integral Orifice Flow Meter is supplied by SANTAN for industrial flow-measurement projects, replacement requirements and model-code review. The data below is intended for preliminary engineering selection and quotation preparation.
Verified Technical Specifications
| النموذج | Rosemount 3051CFP Integral Orifice Flow Meter |
|---|---|
| الخدمة | Small-line gas, liquid and steam differential-pressure flow measurement |
| Primary element | Self-centering integral orifice in a precision-honed meter run |
| Published accuracy | Up to 1.75% of flow rate, application and configuration dependent |
| Line size | 1/2–1 1/2 in. (15–40 mm) |
| Assembly | Fully assembled and leak tested |
| Connection choices | Threaded, socket-weld, beveled or flanged choices by order code |
| Output / diagnostics | Communication, Bluetooth and diagnostics depend on ordered transmitter options |
These are product-family values, not a promise for every configuration. Final sizing, materials, approvals, accuracy, pressure and temperature limits must be confirmed against the complete manufacturer order code and current technical documentation.
Best-Fit Application
Choose 3051CFP for small-bore lines where a factory-engineered meter run reduces uncertainty from actual pipe ID and plate-centering errors. Confirm bore, beta ratio, connection and sizing for the operating conditions.
Quotation and Sizing Data Required
| Process | Fluid, phase, composition, conductivity/density/viscosity as applicable |
|---|---|
| Flow data | Minimum, normal and maximum flow; operating and reference conditions |
| Mechanical | Line size, schedule, connection standard, available straight run and orientation |
| Design limits | Operating/design pressure and temperature; wetted-material requirements |
| Electrical | Power, output/protocol, enclosure, hazardous-area and functional-safety requirements |
| Documentation | Required calibration, inspection, material and compliance documents |
Related Engineering Resources
- Annubar vs compact vs integral orifice selection
- Industrial flowmeter installation checklist
- Steam pipeline instrumentation guide
- Rosemount 3051CFA Annubar
- Rosemount 3051CFC Compact Orifice
- Rosemount 3051 pressure transmitter
Official Manufacturer Reference
Emerson official Rosemount DP Flow Meters product data sheet, March 2025
طلب عرض سعر
Send the complete model code, quantity and process data to sales@santanfluid.com. For a faster engineering review, use WhatsApp: +86 136 9022 3185 (China) or +62 823 1767 3750 (Indonesia). SANTAN will confirm the selectable configuration before quotation; no online payment is required.
ملخص المواصفات الفنية القياسية
استخدم هذه الحقول للاختيار الأولي. تعتمد القيم النهائية على رمز نموذج المصنع الكامل والخيارات المحددة.
| النموذج | Rosemount 3051CFP Integral Orifice Flow Meter |
|---|---|
| نطاق القياس | يعتمد على التكوين؛ أكد النطاق المطلوب والكود النموذج الكامل. |
| الدقة | يعتمد على التكوين؛ أكد فئة الدقة والنطاق المعاير. |
| توصيلة العملية | يعتمد على التكوين؛ أكد الحجم والتصنيف والمعيار والمواد المبللة. |
| إشارة الخرج | يعتمد على التكوين؛ تأكيد متطلبات التناظري والرقمي والاتصالات. |
| الشهادات | أكد موافقات المناطق الخطرة والسلامة الوظيفية والصحية والبحرية أو نقل الحضانة برمز النموذج. |
| صناعات التطبيق | يعتمد على التطبيق؛ أكد الوسط وظروف العملية ومتطلبات الصناعة. |
