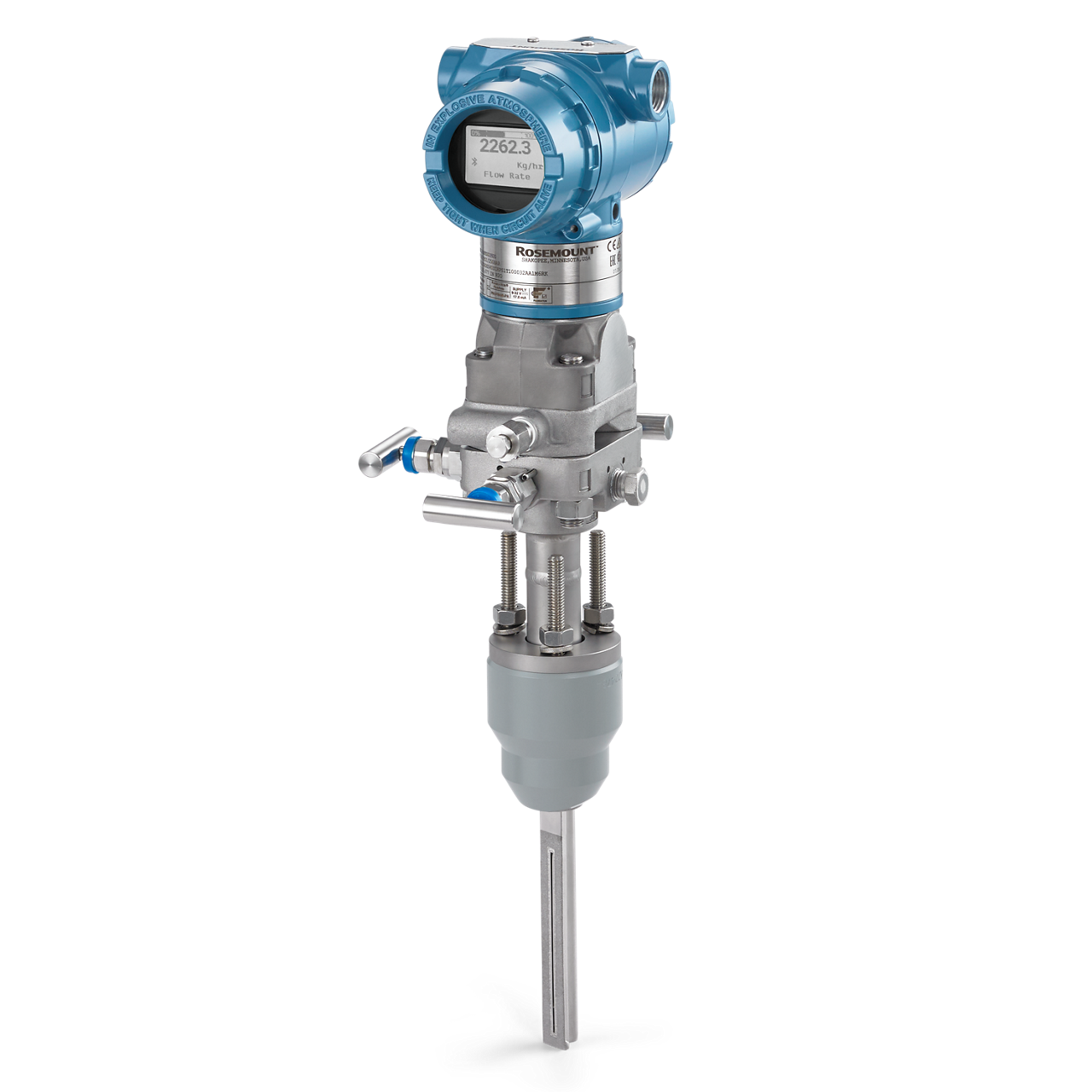

Rosemount 3051CFA Annubar Flow Meter Technical Data and Engineering Selection Guide
Rosemount 3051CFA Annubar Flow Meter is supplied by SANTAN for industrial flow-measurement projects, replacement requirements and model-code review. The data below is intended for preliminary engineering selection and quotation preparation.
Verified Technical Specifications
| النموذج | Rosemount 3051CFA Annubar Flow Meter |
|---|---|
| الخدمة | Gas, liquid and steam differential-pressure flow measurement |
| Primary element | T-shaped Annubar averaging pitot sensor |
| Published accuracy | Up to 1.8% of flow rate, application and configuration dependent |
| Line size | 2–96 in. (50–2,400 mm) |
| Assembly | Fully assembled and leak tested |
| Diagnostics / display | Plugged-impulse-line diagnostics, graphical display and Bluetooth are option dependent |
| Output / approvals | Select communication and safety options by complete transmitter order code |
These are product-family values, not a promise for every configuration. Final sizing, materials, approvals, accuracy, pressure and temperature limits must be confirmed against the complete manufacturer order code and current technical documentation.
Best-Fit Application
Choose 3051CFA when reduced permanent pressure loss and large-line insertion measurement are priorities. A verified sizing calculation still requires fluid properties, operating pressure/temperature, flow range, pipe schedule and straight-run data.
Quotation and Sizing Data Required
| Process | Fluid, phase, composition, conductivity/density/viscosity as applicable |
|---|---|
| Flow data | Minimum, normal and maximum flow; operating and reference conditions |
| Mechanical | Line size, schedule, connection standard, available straight run and orientation |
| Design limits | Operating/design pressure and temperature; wetted-material requirements |
| Electrical | Power, output/protocol, enclosure, hazardous-area and functional-safety requirements |
| Documentation | Required calibration, inspection, material and compliance documents |
Related Engineering Resources
- Annubar vs compact vs integral orifice selection
- Industrial pipeline pressure-drop optimization
- Steam pipeline instrumentation guide
- Rosemount 3051CFC Compact Orifice
- Rosemount 3051CFP Integral Orifice
- Rosemount 3051 pressure transmitter
Official Manufacturer Reference
Emerson official Rosemount DP Flow Meters product data sheet, March 2025
طلب عرض سعر
Send the complete model code, quantity and process data to sales@santanfluid.com. For a faster engineering review, use WhatsApp: +86 136 9022 3185 (China) or +62 823 1767 3750 (Indonesia). SANTAN will confirm the selectable configuration before quotation; no online payment is required.
ملخص المواصفات الفنية القياسية
استخدم هذه الحقول للاختيار الأولي. تعتمد القيم النهائية على رمز نموذج المصنع الكامل والخيارات المحددة.
| النموذج | Rosemount 3051CFA Annubar Flow Meter |
|---|---|
| نطاق القياس | يعتمد على التكوين؛ أكد النطاق المطلوب والكود النموذج الكامل. |
| الدقة | يعتمد على التكوين؛ أكد فئة الدقة والنطاق المعاير. |
| توصيلة العملية | يعتمد على التكوين؛ أكد الحجم والتصنيف والمعيار والمواد المبللة. |
| إشارة الخرج | يعتمد على التكوين؛ تأكيد متطلبات التناظري والرقمي والاتصالات. |
| الشهادات | أكد موافقات المناطق الخطرة والسلامة الوظيفية والصحية والبحرية أو نقل الحضانة برمز النموذج. |
| صناعات التطبيق | يعتمد على التطبيق؛ أكد الوسط وظروف العملية ومتطلبات الصناعة. |
