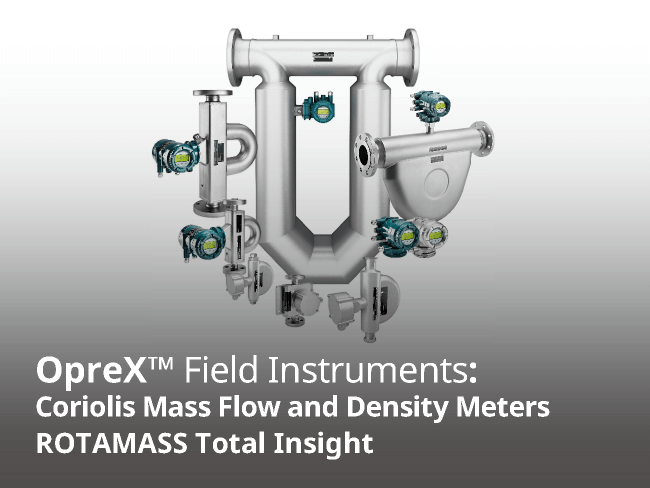

Yokogawa ROTAMASS Total Insight Coriolis Flowmeter Technical Data and Engineering Selection Guide
Flowmeter Coriolis Total Insight Yokogawa ROTAMASS is supplied by SANTAN for industrial flow-measurement projects, replacement requirements and model-code review. The data below is intended for preliminary engineering selection and quotation preparation.
Verified Technical Specifications
| Portfolio | Nano, Prime, Hygienic, Supreme, Intense and Giga sensor families |
|---|---|
| Direct variables | Mass flow, density and temperature |
| Calculated variables | Operating/reference volume flow, reference density and concentration |
| Media | Liquids and gases; application envelope depends on selected sensor family |
| Liquid mass-flow accuracy | Up to ±0.1% across the published family lineup |
| Gas mass-flow accuracy | Up to ±0.35% across the published family lineup |
| Temperature envelope | Published family endpoints from -196 to +350 °C; not available on every model |
| Pressure envelope | Published family limits vary by model and option; verify the selected order code |
These are product-family values, not a promise for every configuration. Final sizing, materials, approvals, accuracy, pressure and temperature limits must be confirmed against the complete manufacturer order code and current technical documentation.
Best-Fit Application
Select the ROTAMASS sensor family by flow range, phase, pressure, temperature, hygienic/high-pressure requirements and allowable pressure loss. Do not transfer the maximum rating of one family member to another.
Quotation and Sizing Data Required
| Process | Fluid, phase, composition, conductivity/density/viscosity as applicable |
|---|---|
| Flow data | Minimum, normal and maximum flow; operating and reference conditions |
| Mechanical | Line size, schedule, connection standard, available straight run and orientation |
| Design limits | Operating/design pressure and temperature; wetted-material requirements |
| Electrical | Power, output/protocol, enclosure, hazardous-area and functional-safety requirements |
| Documentation | Required calibration, inspection, material and compliance documents |
Related Engineering Resources
- Coriolis vs electromagnetic flowmeter selection
- Industrial flowmeter selection guide
- Industrial flowmeter installation checklist
- Endress+Hauser Promass F 300 alternative
- KROHNE OPTIMASS 6400 alternative
- Flow measurement product category
Official Manufacturer Reference
Yokogawa official ROTAMASS Total Insight product page and current specification downloads
Minta Penawaran
Send the complete model code, quantity and process data to sales@santanfluid.com. For a faster engineering review, use WhatsApp: +86 136 9022 3185 (China) or +62 823 1767 3750 (Indonesia). SANTAN will confirm the selectable configuration before quotation; no online payment is required.
Food, Beverage and Hygienic Application Notes
ROTAMASS configurations cover different flow ranges and process conditions. Confirm the fluid, minimum and maximum flow, density range, hygienic connection, cleaning temperature, transmitter output and required approvals before selecting the exact model code.
Review the wider food and beverage instrumentation guide, or send the medium, range, temperature, pressure, connection, material, output and quantity to sales@santanfluid.com for model confirmation.
Ringkasan Spesifikasi Teknis
Gunakan bidang ini untuk pemilihan awal. Nilai akhir tergantung pada kode model lengkap pabrikan dan opsi yang dipilih.
| Model | Flowmeter Coriolis Total Insight Yokogawa ROTAMASS |
|---|---|
| Rentang Pengukuran | Tergantung konfigurasi; konfirmasi rentang yang diperlukan dan kode model lengkap. |
| Akurasi | Bergantung konfigurasi; konfirmasi kelas akurasi dan jangkauan yang dikalibrasi. |
| Koneksi Proses | Bergantung konfigurasi; konfirmasi ukuran, peringkat, standar dan material basah. |
| Sinyal Output | Tergantung konfigurasi; konfirmasikan persyaratan analog, digital dan komunikasi. |
| Sertifikasi | Konfirmasikan persetujuan area berbahaya, keselamatan fungsional, saniter, kelautan atau kepemilikan transfer dengan kode model. |
| Industri Aplikasi | Bergantung aplikasi; konfirmasi media, kondisi proses dan persyaratan industri. |
