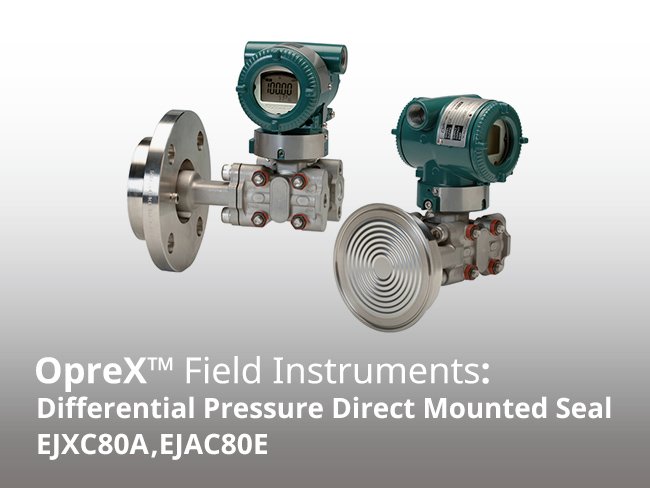

Yokogawa EJXC80A EJAC80E Direct Mounted Diaphragm Seal System Technical Data and Selection Guide
Yokogawa EJXC80A EJAC80E Direct Mounted Diaphragm Seal System is available from SANTAN for industrial pipeline instrumentation, replacement and export projects. This engineering page summarizes verified Yokogawa family data for model comparison and quotation preparation.
Verified Technical Specifications
| Brand / model | EJXC80A / EJAC80E |
|---|---|
| Measured variable / service | Differential pressure measurement with one direct-mounted diaphragm seal |
| Accuracy / stability | High-accuracy DPharp system; final accuracy depends on transmitter and seal configuration |
| Jangkauan pengukuran | M: 1-100 kPa; H: 5-500 kPa; V flush: 0.14-14 MPa; V extended: 0.14-7 MPa |
| Response time | 120 ms |
| Sambungan proses | Flush or extended diaphragm seal; size and flange standard by order code |
| Output / komunikasi | HART, FOUNDATION Fieldbus or PROFIBUS communication by configuration |
| Approvals / safety | Hazardous-area and material options depend on complete order code |
Final measuring span, wetted materials, process connection, output, enclosure and approval depend on the complete Yokogawa model and suffix code. Confirm the current General Specifications before ordering.
Typical Applications
- Pressurized vessel level
- viscous media
- corrosive service
- plugged impulse-line avoidance
Data Required for Selection
| Process | Medium, minimum/normal/maximum pressure, temperature and density |
|---|---|
| Pengukuran | LRV, URV, required accuracy, response and static pressure |
| Mechanical | Process connection, manifold, wetted material and mounting arrangement |
| Electrical | Power supply, communication protocol, enclosure and Ex/SIL approval |
Related Products and Industry Solutions
- Yokogawa instrumentation range
- Pressure Measurement products
- Industrial measurement solutions
- Contact SANTAN engineering sales
Official Reference
Yokogawa official product page
Minta Penawaran
Send the full model code, quantity and process data to sales@santanfluid.com. WhatsApp +86 136 9022 3185 or +62 823 1767 3750. No online payment is required.
Ringkasan Spesifikasi Teknis
Gunakan bidang ini untuk pemilihan awal. Nilai akhir tergantung pada kode model lengkap pabrikan dan opsi yang dipilih.
| Model | YOK-EJXC80A-EJAC80E |
|---|---|
| Rentang Pengukuran | M: 1-100 kPa; H: 5-500 kPa; V flush: 0.14-14 MPa; V extended: 0.14-7 MPa |
| Akurasi | Bergantung konfigurasi; konfirmasi kelas akurasi dan jangkauan yang dikalibrasi. |
| Koneksi Proses | Flush or extended diaphragm seal; size and flange standard by order code |
| Sinyal Output | Tergantung konfigurasi; konfirmasikan persyaratan analog, digital dan komunikasi. |
| Sertifikasi | Konfirmasikan persetujuan area berbahaya, keselamatan fungsional, saniter, kelautan atau kepemilikan transfer dengan kode model. |
| Industri Aplikasi | Bergantung aplikasi; konfirmasi media, kondisi proses dan persyaratan industri. |
