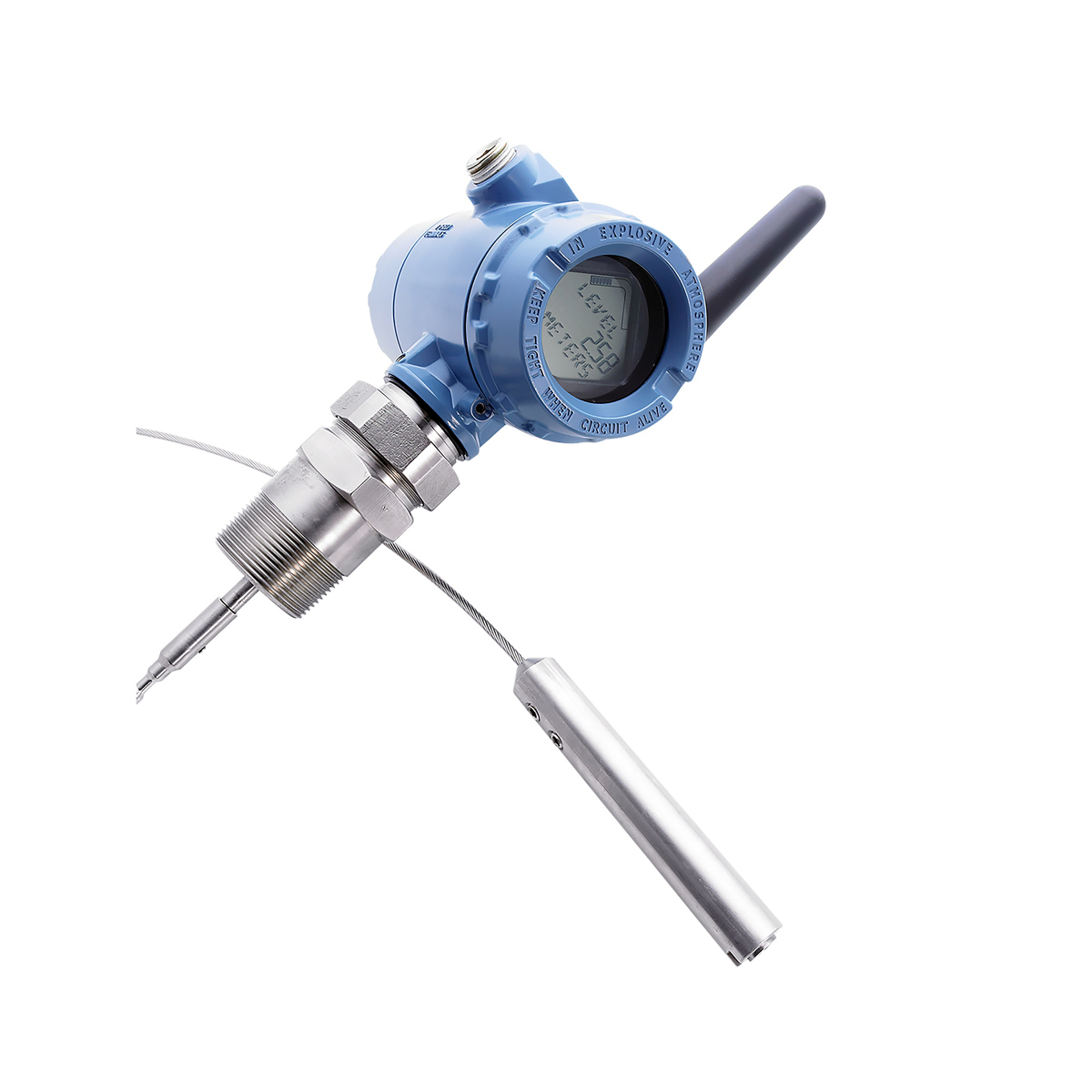

Rosemount 3308 Wireless Guided Wave Radar Level Transmitter Technical Data and Engineering Selection Guide
Pemancar Level Radar Gelombang Terpandu Nirkabel Rosemount 3308 is supplied by SANTAN for new projects, installed-base replacement and complete model-code review. The verified information below supports preliminary engineering selection and quotation preparation.
Verified Product-Family Specifications
| Prinsip pengukuran | Guided wave radar / time-domain reflectometry |
|---|---|
| Measurements | Liquid level and liquid-liquid interface |
| Communication | Native WirelessHART mesh-network communication |
| Published accuracy | ±3 mm for the stated family offering |
| Temperature envelope | -40 to +150 °C, probe and seal dependent |
| Pressure envelope | Full vacuum to 40 bar, configuration dependent |
| Probe choices | Rigid, segmented or flexible single-lead, coaxial and PTFE-coated options |
| Diagnostics | Signal-quality and device diagnostics for remote maintenance planning |
Published values describe the product family and are configuration dependent. Final range, accuracy, materials, pressure, temperature, approvals, communications and accessories must be checked against the selected Emerson/Rosemount model code and current documentation.
Best-Fit Application
Use the 3308 to automate level or interface points where signal wiring is costly or impractical. Confirm dielectric constants, upper/lower fluids, probe contact suitability, vessel obstructions, wireless network design and power-module update rate.
Quotation and Selection Data Required
| Aplikasi | Continuous level, interface, open-channel flow, alarm or overfill duty |
|---|---|
| Process | Liquid/solid properties, dielectric constant, density, viscosity, foam, dust and buildup |
| Geometry | Measuring range, tank/silo dimensions, nozzle, obstructions and mounting position |
| Design limits | Operating/design pressure and temperature; wetted-material requirements |
| Electrical | Power, wired/wireless output, update rate, enclosure and hazardous-area requirements |
| Compliance | SIL, hygienic, custody-transfer, drinking-water or other project approvals |
Related Engineering Resources
- Level solutions for tanks, reactors and silos
- Level instruments for corrosive tanks
- Rosemount 3408 wireless non-contacting option
- Rosemount 2160 wireless point-level detector
- SIL, IP rating and material selection
- Level measurement products
Official Manufacturer Reference
Emerson official Rosemount 3308 product page and current technical downloads
Minta Penawaran
Send the complete Rosemount model code, quantity and process data to sales@santanfluid.com. For a faster engineering review, use WhatsApp: +86 136 9022 3185 (China) or +62 823 1767 3750 (Indonesia). SANTAN will confirm the selectable configuration before quotation; no online payment is required.
Ringkasan Spesifikasi Teknis
Gunakan bidang ini untuk pemilihan awal. Nilai akhir tergantung pada kode model lengkap pabrikan dan opsi yang dipilih.
| Model | Pemancar Level Radar Gelombang Terpandu Nirkabel Rosemount 3308 |
|---|---|
| Rentang Pengukuran | Tergantung konfigurasi; konfirmasi rentang yang diperlukan dan kode model lengkap. |
| Akurasi | Bergantung konfigurasi; konfirmasi kelas akurasi dan jangkauan yang dikalibrasi. |
| Koneksi Proses | Bergantung konfigurasi; konfirmasi ukuran, peringkat, standar dan material basah. |
| Sinyal Output | Tergantung konfigurasi; konfirmasikan persyaratan analog, digital dan komunikasi. |
| Sertifikasi | Konfirmasikan persetujuan area berbahaya, keselamatan fungsional, saniter, kelautan atau kepemilikan transfer dengan kode model. |
| Industri Aplikasi | Bergantung aplikasi; konfirmasi media, kondisi proses dan persyaratan industri. |
