Deskripsi
Ringkasan Produk

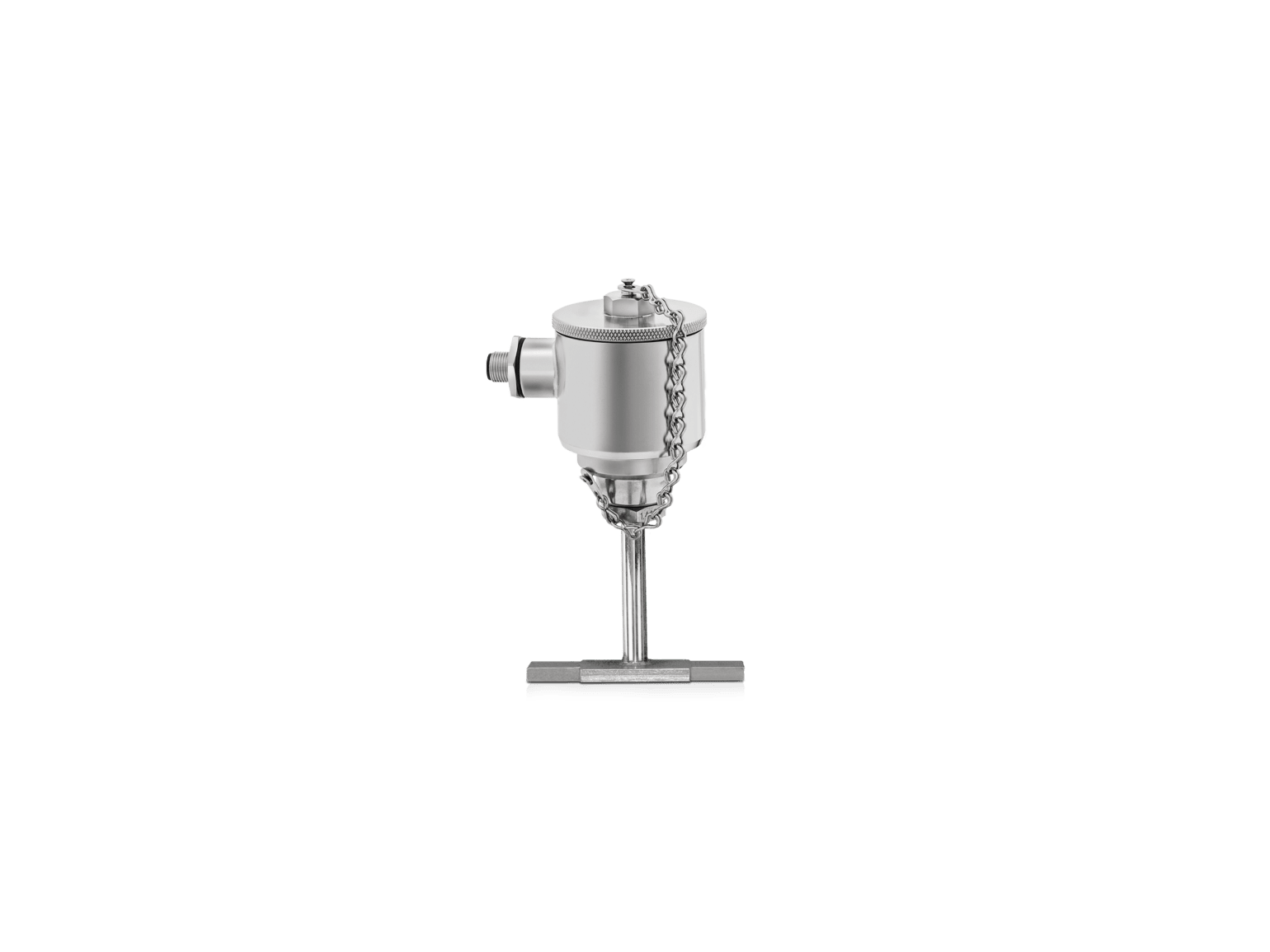

The KROHNE OPTITEMP TRA-G10 is an RTD temperature assembly for industrial surface-temperature measurement. It enables pipe or equipment monitoring where process penetration is undesirable or impractical.
Informasi Keluarga Produk KROHNE
This page summarizes the engineering scope of the KROHNE OPTITEMP TRA-G10 Surface RTD Temperature Sensor. Final selection must be verified against current KROHNE technical documentation, process data and required approvals before ordering.
Parameter Teknis dan Pemilihan Terperinci
| Model produk | OPTITEMP TRA-G10 Surface RTD Temperature Sensor |
|---|---|
| Prinsip pengukuran | Surface-contact RTD temperature measurement |
| Layanan khas | Pipe, vessel and machinery surfaces |
| Konsep instalasi | Externally attached to the monitored surface |
| Komunikasi / output | RTD resistance signal or optional transmitter |
| Panduan kinerja | Accuracy depends on surface contact, insulation, ambient conditions and mounting |
| Bahan dan konfigurasi | Sensor, contact pad and cable selected for temperature and environment |
| Pabrikan / merek | KROHNE |
| Konfirmasi model | Spesifikasi akhir tergantung pada kode model yang dipesan lengkap dan data proses |
| Dukungan komersial | Santan Fluid menyediakan tinjauan model, penawaran dan dukungan pasokan internasional |
Aplikasi Industri Khas
- Pipe surface temperature
- Machinery monitoring
- Retrofit temperature points
- Jacketed process equipment
Informasi Diperlukan untuk Pemilihan Model
- Surface temperature range
- Pipe or equipment geometry
- Mounting and insulation
- Response and accuracy target
- Cable, transmitter and area approval
Catatan Teknis
Pemilihan harus mempertimbangkan kondisi proses, kompatibilitas material basah, geometri instalasi, protokol komunikasi, diagnostik dan persyaratan hazardous-area. Nama produk dan trademark milik pemiliknya masing-masing.
Minta Konfirmasi Model dan Penawaran
Kirimkan lembar data proses, kode model yang diperlukan atau deskripsi aplikasi ke tim instrumentasi kami.
Email: sales@santanfluid.com
WhatsApp: +8613690223185
Ringkasan Spesifikasi Teknis
Gunakan bidang ini untuk pemilihan awal. Nilai akhir tergantung pada kode model lengkap pabrikan dan opsi yang dipilih.
| Model | Sensor Suhu RTD Permukaan KROHNE OPTITEMP TRA-G10 |
|---|---|
| Rentang Pengukuran | Surface temperature measurement from -50 to +200 deg C |
| Akurasi | RTD performance depends on Pt100 class and installation; spring-loaded tip maintains repeatable surface contact |
| Koneksi Proses | Hose-clamp mounting with 40 mm spring travel; 10 mm neck tube and 6 mm measuring tip |
| Sinyal Output | Pt100 resistance signal, commonly 3-wire or 4-wire; optional head-mounted transmitter and display |
| Sertifikasi | IP65 standard and IP68 option; enclosure and hazardous-area options depend on selected connection head |
| Industri Aplikasi | Chemical; pharmaceutical; machinery; OEM skids; non-intrusive pipe and storage-tank surface temperature |
