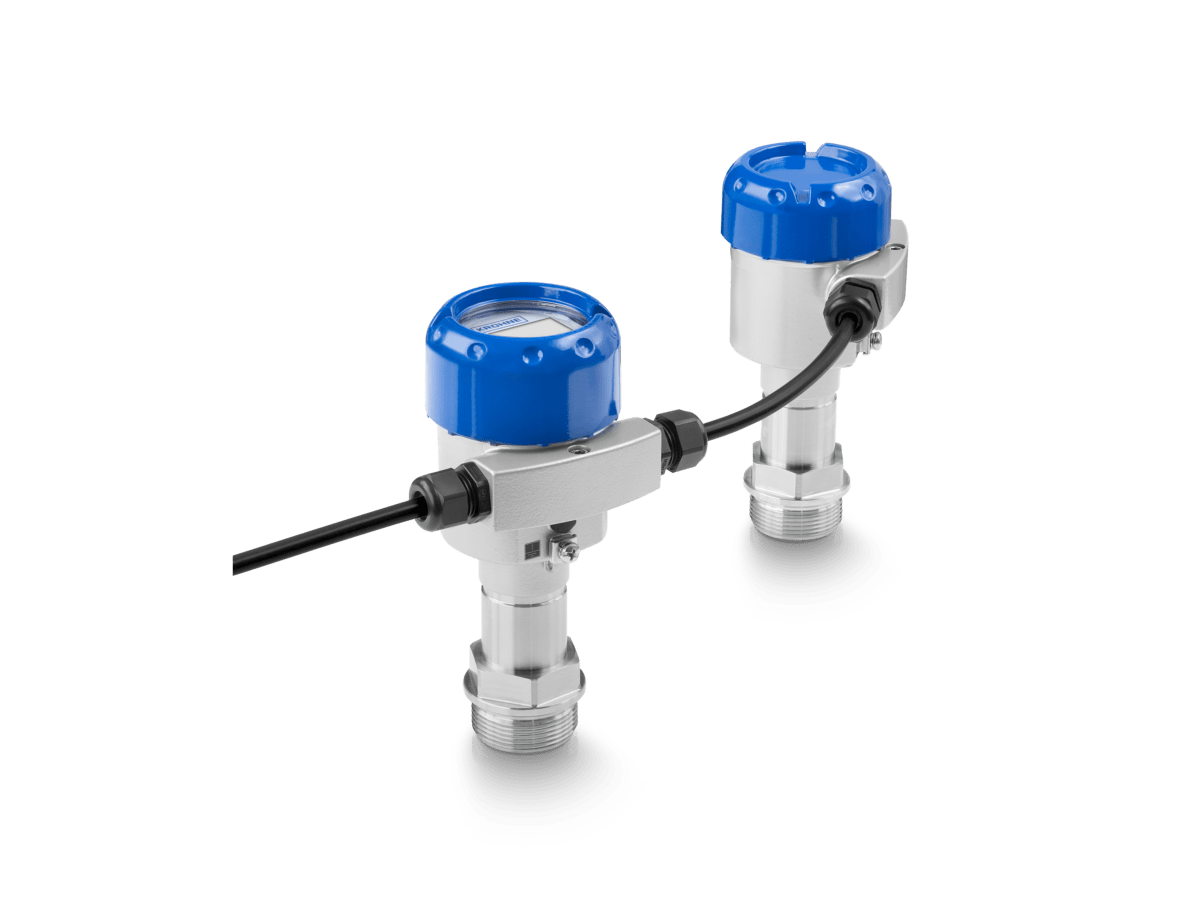

The KROHNE OPTIBAR 5060 eDP uses two electronically connected pressure sensors to calculate differential pressure. It reduces traditional impulse-line and capillary limitations for level, density and differential-pressure applications.
Informasi Keluarga Produk KROHNE
This page summarizes the engineering scope of the KROHNE OPTIBAR 5060 eDP Electronic Differential Pressure Transmitter. Final selection must be verified against current KROHNE technical documentation, process data and required approvals before ordering.
Parameter Teknis dan Pemilihan Terperinci
| Model produk | OPTIBAR 5060 eDP Electronic Differential Pressure Transmitter |
|---|---|
| Prinsip pengukuran | Electronic differential pressure using paired pressure sensors |
| Layanan khas | Liquids and gases in vessels and process equipment |
| Konsep instalasi | High- and low-side sensors mounted at separate process points |
| Komunikasi / output | Digital link between sensors with process output from the primary transmitter |
| Panduan kinerja | System accuracy depends on sensor ranges, temperature effects and installation height |
| Bahan dan konfigurasi | Each process connection and diaphragm selected for its measurement point |
| Pabrikan / merek | KROHNE |
| Konfirmasi model | Spesifikasi akhir tergantung pada kode model yang dipesan lengkap dan data proses |
| Dukungan komersial | Santan Fluid menyediakan tinjauan model, penawaran dan dukungan pasokan internasional |
Aplikasi Industri Khas
- Tall-vessel level
- Density measurement
- Filter and equipment DP
- Applications with long impulse lines
Informasi Diperlukan untuk Pemilihan Model
- High/low static pressure
- Expected differential span
- Elevation and mounting distance
- Process temperature and seals
- Output, synchronization and approvals
Catatan Teknis
Pemilihan harus mempertimbangkan kondisi proses, kompatibilitas material basah, geometri instalasi, protokol komunikasi, diagnostik dan persyaratan hazardous-area. Nama produk dan trademark milik pemiliknya masing-masing.
Minta Konfirmasi Model dan Penawaran
Kirimkan lembar data proses, kode model yang diperlukan atau deskripsi aplikasi ke tim instrumentasi kami.
Email: sales@santanfluid.com
WhatsApp: +8613690223185
Ringkasan Spesifikasi Teknis
Gunakan bidang ini untuk pemilihan awal. Nilai akhir tergantung pada kode model lengkap pabrikan dan opsi yang dipilih.
| Model | OPTIBAR 5060 eDP Electronic Differential Pressure Transmitter |
|---|---|
| Rentang Pengukuran | System accuracy depends on sensor ranges, temperature effects and installation height |
| Akurasi | System accuracy depends on sensor ranges, temperature effects and installation height |
| Koneksi Proses | High- and low-side sensors mounted at separate process points |
| Sinyal Output | Digital link between sensors with process output from the primary transmitter |
| Sertifikasi | Konfirmasikan persetujuan area berbahaya, keselamatan fungsional, saniter, kelautan atau kepemilikan transfer dengan kode model. |
| Industri Aplikasi | Tall-vessel level; Density measurement; Filter and equipment DP; Applications with long impulse lines |
