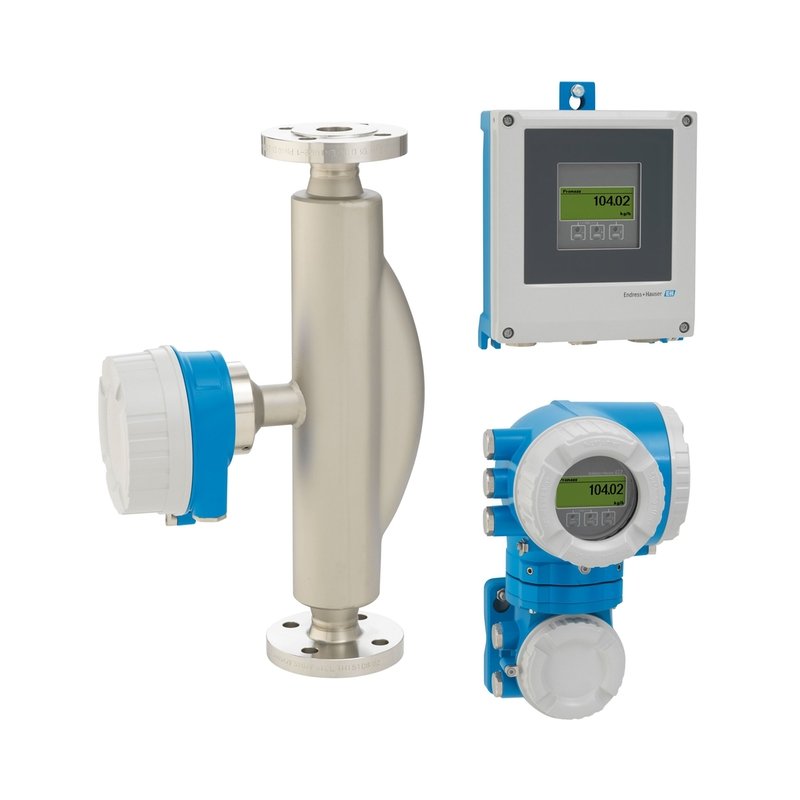

Endress+Hauser Proline Promass F 500 Coriolis Flowmeter Technical Data and Selection Guide
Endress+Hauser Proline Promass F 500 Coriolis Flowmeter is supplied by SANTAN for industrial pipeline instrumentation, process control and replacement projects. This page gives engineers and purchasing teams verified family-level data for model comparison and quotation preparation.
Verified Technical Specifications
| Brand / model | Proline Promass F 500 (8F5B) |
|---|---|
| Measured variable / service | High-accuracy mass flow, density and temperature measurement |
| Accuracy / performance | Liquid mass flow +/-0.10% standard, +/-0.05% option; gas +/-0.25% |
| Jangkauan pengukuran | 0 to 2,200,000 kg/h; DN 8 to DN 250 |
| Process temperature | -196 to +350 degC depending on version |
| Process pressure | Up to PN 100 / Class 600 / 63K |
| Sambungan proses | Remote transmitter with flanged process connections |
| Output / komunikasi | Up to 4 configurable I/Os and fieldbus options |
| Materials / approvals | 904L, 316/316L or Alloy C22 wetted options; PED, CRN and hygienic variants |
Specifications describe the product family. Final range, materials, approvals, accuracy and connection details depend on the complete Endress+Hauser order code and current technical documentation.
Typical Applications
- Custody and process transfer
- LNG and cryogenic service
- chemicals
- high-temperature fluids
Selection Information Required
| Process | Medium, conductivity or density, operating pressure and temperature |
|---|---|
| Pengukuran | Minimum, normal and maximum range; required accuracy and response time |
| Mechanical | Pipe or vessel size, connection standard, wetted materials and installation limits |
| Electrical | Power supply, output protocol, enclosure and hazardous-area approval |
Related Products and Solutions
- Endress+Hauser product range
- All process instrumentation
- Industry solutions
- Contact SANTAN engineering sales
Official Reference
Endress+Hauser official product documentation
Minta Penawaran
Send the model code, quantity and process data to sales@santanfluid.com. WhatsApp +86 136 9022 3185 or +62 823 1767 3750. No online payment is required.
Ringkasan Spesifikasi Teknis
Gunakan bidang ini untuk pemilihan awal. Nilai akhir tergantung pada kode model lengkap pabrikan dan opsi yang dipilih.
| Model | EH-8F5B-PROMASS-F500 |
|---|---|
| Rentang Pengukuran | 0 to 2,200,000 kg/h; DN 8 to DN 250 |
| Akurasi | Bergantung konfigurasi; konfirmasi kelas akurasi dan jangkauan yang dikalibrasi. |
| Koneksi Proses | Remote transmitter with flanged process connections |
| Sinyal Output | Tergantung konfigurasi; konfirmasikan persyaratan analog, digital dan komunikasi. |
| Sertifikasi | Konfirmasikan persetujuan area berbahaya, keselamatan fungsional, saniter, kelautan atau kepemilikan transfer dengan kode model. |
| Industri Aplikasi | Bergantung aplikasi; konfirmasi media, kondisi proses dan persyaratan industri. |
