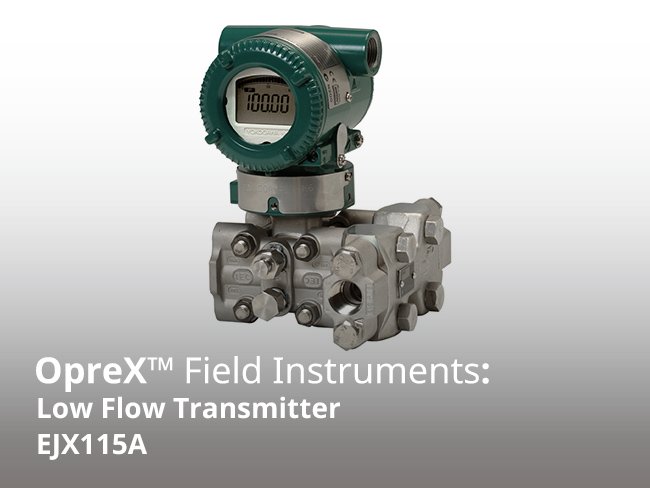

Yokogawa EJX115A Low Flow Transmitter Technical Data and Selection Guide
Yokogawa EJX115A Low Flow Transmitter is available from SANTAN for industrial pipeline instrumentation, replacement and export projects. This engineering page summarizes verified Yokogawa family data for model comparison and quotation preparation.
Verified Technical Specifications
| Brand / model | EJX115A |
|---|---|
| Measured variable / service | Very low flow measurement using an integral flow orifice |
| Accuracy / stability | +/-0.04% square-root output accuracy; +/-0.1% per 15 years DP stability |
| نطاق القياس | Integral flow orifices: 0.508, 0.864, 1.511, 2.527, 4.039 or 6.350 mm bore |
| Response time | 90 to 150 ms |
| توصيل العملية | Integral orifice assembly; final process connection depends on order code |
| الإخراج / الاتصالات | 4-20 mA; HART, BRAIN, FOUNDATION Fieldbus or PROFIBUS PA by configuration |
| Approvals / safety | Exida and TUV SIL 2/3 certified; MWP up to 2,300 psi for applicable configurations |
Final measuring span, wetted materials, process connection, output, enclosure and approval depend on the complete Yokogawa model and suffix code. Confirm the current General Specifications before ordering.
Typical Applications
- Purge flow
- seal gas
- analyzer sample flow
- chemical injection
Data Required for Selection
| Process | Medium, minimum/normal/maximum pressure, temperature and density |
|---|---|
| القياس | LRV, URV, required accuracy, response and static pressure |
| Mechanical | Process connection, manifold, wetted material and mounting arrangement |
| Electrical | Power supply, communication protocol, enclosure and Ex/SIL approval |
Related Products and Industry Solutions
- Yokogawa instrumentation range
- Flow Measurement products
- Industrial measurement solutions
- Contact SANTAN engineering sales
Official Reference
Yokogawa official product page
طلب عرض سعر
Send the full model code, quantity and process data to sales@santanfluid.com. WhatsApp +86 136 9022 3185 or +62 823 1767 3750. No online payment is required.
ملخص المواصفات الفنية القياسية
استخدم هذه الحقول للاختيار الأولي. تعتمد القيم النهائية على رمز نموذج المصنع الكامل والخيارات المحددة.
| النموذج | YOK-EJX115A |
|---|---|
| نطاق القياس | Integral flow orifices: 0.508, 0.864, 1.511, 2.527, 4.039 or 6.350 mm bore |
| الدقة | يعتمد على التكوين؛ أكد فئة الدقة والنطاق المعاير. |
| توصيلة العملية | Integral orifice assembly; final process connection depends on order code |
| إشارة الخرج | يعتمد على التكوين؛ تأكيد متطلبات التناظري والرقمي والاتصالات. |
| الشهادات | أكد موافقات المناطق الخطرة والسلامة الوظيفية والصحية والبحرية أو نقل الحضانة برمز النموذج. |
| صناعات التطبيق | يعتمد على التطبيق؛ أكد الوسط وظروف العملية ومتطلبات الصناعة. |
