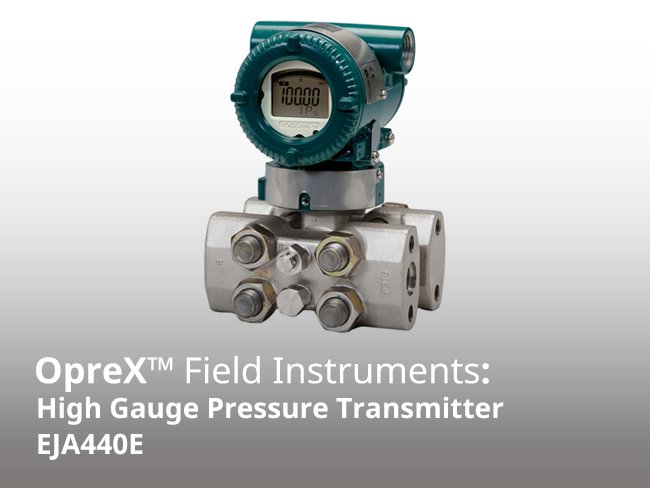

Yokogawa EJA440E High Gauge Pressure Transmitter Technical Data and Selection Guide
Yokogawa EJA440E High Gauge Pressure Transmitter is available from SANTAN for industrial pipeline instrumentation, replacement and export projects. This engineering page summarizes verified Yokogawa family data for model comparison and quotation preparation.
Verified Technical Specifications
| Brand / model | EJA440E |
|---|---|
| Measured variable / service | High gauge pressure measurement for demanding liquid, gas and steam applications |
| Accuracy / stability | +/-0.055% reference accuracy; +/-0.1% per 10 years stability |
| نطاق القياس | High-pressure capsule and calibrated range depend on complete order code |
| Response time | 90 ms |
| توصيل العملية | Traditional-mount high-pressure process connection by configuration |
| الإخراج / الاتصالات | HART 5/7, 1-5 VDC HART 7, FOUNDATION Fieldbus, PROFIBUS PA or BRAIN |
| Approvals / safety | Exida and TUV SIL 2/3 certified; hazardous-area approvals by order code |
Final measuring span, wetted materials, process connection, output, enclosure and approval depend on the complete Yokogawa model and suffix code. Confirm the current General Specifications before ordering.
Typical Applications
- High-pressure water
- hydraulic power units
- compressors
- refinery and pipeline service
Data Required for Selection
| Process | Medium, minimum/normal/maximum pressure, temperature and density |
|---|---|
| القياس | LRV, URV, required accuracy, response and static pressure |
| Mechanical | Process connection, manifold, wetted material and mounting arrangement |
| Electrical | Power supply, communication protocol, enclosure and Ex/SIL approval |
Related Products and Industry Solutions
- Yokogawa instrumentation range
- Pressure Measurement products
- Industrial measurement solutions
- Contact SANTAN engineering sales
Official Reference
Yokogawa official product page
طلب عرض سعر
Send the full model code, quantity and process data to sales@santanfluid.com. WhatsApp +86 136 9022 3185 or +62 823 1767 3750. No online payment is required.
ملخص المواصفات الفنية القياسية
استخدم هذه الحقول للاختيار الأولي. تعتمد القيم النهائية على رمز نموذج المصنع الكامل والخيارات المحددة.
| النموذج | YOK-EJA440E |
|---|---|
| نطاق القياس | High-pressure capsule and calibrated range depend on complete order code |
| الدقة | يعتمد على التكوين؛ أكد فئة الدقة والنطاق المعاير. |
| توصيلة العملية | Traditional-mount high-pressure process connection by configuration |
| إشارة الخرج | يعتمد على التكوين؛ تأكيد متطلبات التناظري والرقمي والاتصالات. |
| الشهادات | أكد موافقات المناطق الخطرة والسلامة الوظيفية والصحية والبحرية أو نقل الحضانة برمز النموذج. |
| صناعات التطبيق | يعتمد على التطبيق؛ أكد الوسط وظروف العملية ومتطلبات الصناعة. |
