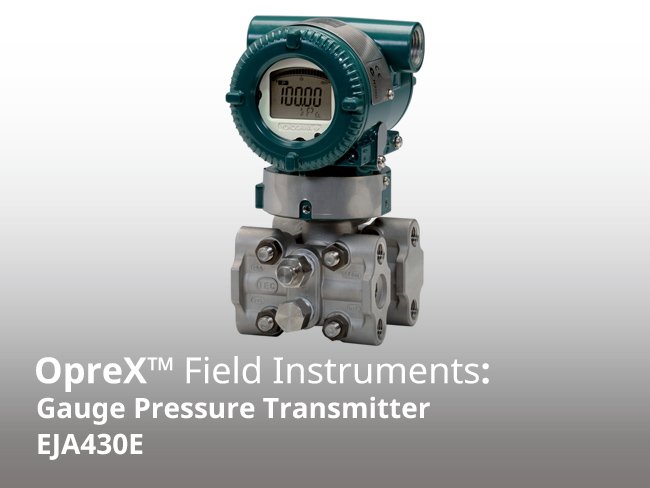

Yokogawa EJA430E Gauge Pressure Transmitter Technical Data and Selection Guide
Yokogawa EJA430E Gauge Pressure Transmitter is available from SANTAN for industrial pipeline instrumentation, replacement and export projects. This engineering page summarizes verified Yokogawa family data for model comparison and quotation preparation.
Verified Technical Specifications
| Brand / model | EJA430E |
|---|---|
| Measured variable / service | General industrial gauge pressure measurement for liquids, gases and steam |
| Accuracy / stability | +/-0.055% standard; +/-0.04% option; +/-0.1% per 10 years stability |
| نطاق القياس | Gauge-pressure capsule and calibrated range depend on order code |
| Response time | 90 ms |
| توصيل العملية | Traditional-mount process connection; manifold and adapter options |
| الإخراج / الاتصالات | HART 5/7, 1-5 V HART 7, FOUNDATION Fieldbus, PROFIBUS PA or BRAIN |
| Approvals / safety | Exida and TUV SIL 2/3 certified; Ex approvals by order code |
Final measuring span, wetted materials, process connection, output, enclosure and approval depend on the complete Yokogawa model and suffix code. Confirm the current General Specifications before ordering.
Typical Applications
- Water treatment
- chemical processing
- power utilities
- general pipeline pressure
Data Required for Selection
| Process | Medium, minimum/normal/maximum pressure, temperature and density |
|---|---|
| القياس | LRV, URV, required accuracy, response and static pressure |
| Mechanical | Process connection, manifold, wetted material and mounting arrangement |
| Electrical | Power supply, communication protocol, enclosure and Ex/SIL approval |
Related Products and Industry Solutions
- Yokogawa instrumentation range
- Pressure Measurement products
- Industrial measurement solutions
- Contact SANTAN engineering sales
Official Reference
Yokogawa official product page
طلب عرض سعر
Send the full model code, quantity and process data to sales@santanfluid.com. WhatsApp +86 136 9022 3185 or +62 823 1767 3750. No online payment is required.
ملخص المواصفات الفنية القياسية
استخدم هذه الحقول للاختيار الأولي. تعتمد القيم النهائية على رمز نموذج المصنع الكامل والخيارات المحددة.
| النموذج | YOK-EJA430E |
|---|---|
| نطاق القياس | Gauge-pressure capsule and calibrated range depend on order code |
| الدقة | يعتمد على التكوين؛ أكد فئة الدقة والنطاق المعاير. |
| توصيلة العملية | Traditional-mount process connection; manifold and adapter options |
| إشارة الخرج | يعتمد على التكوين؛ تأكيد متطلبات التناظري والرقمي والاتصالات. |
| الشهادات | أكد موافقات المناطق الخطرة والسلامة الوظيفية والصحية والبحرية أو نقل الحضانة برمز النموذج. |
| صناعات التطبيق | يعتمد على التطبيق؛ أكد الوسط وظروف العملية ومتطلبات الصناعة. |
