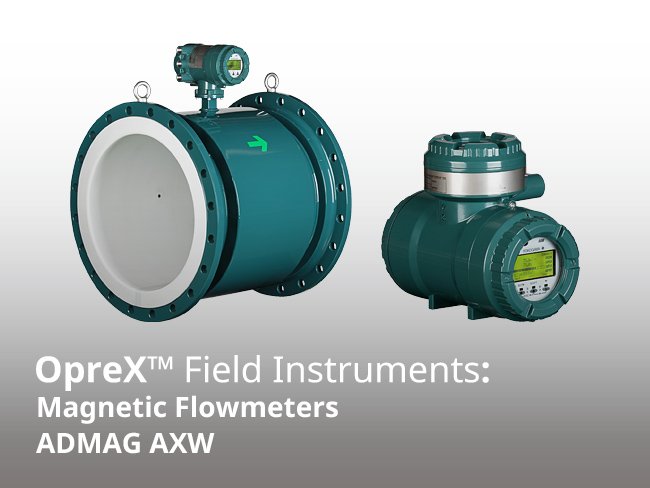

Yokogawa ADMAG AXW Magnetic Flowmeter Technical Data and Engineering Selection Guide
مقياس التدفق المغناطيسي Yokogawa ADMAG AXW is supplied by SANTAN for industrial flow-measurement projects, replacement requirements and model-code review. The data below is intended for preliminary engineering selection and quotation preparation.
Verified Technical Specifications
| Product family | ADMAG Total Insight AXW |
|---|---|
| مبدأ القياس | Electromagnetic volume-flow measurement for conductive liquids |
| Nominal size | 25–1,800 mm (1–72 in.) |
| الدقة | ±0.35% of flow rate for the stated family offering |
| Liner choices | PTFE plus polyurethane, natural soft-rubber and natural hard-rubber choices |
| التثبيت | Integral or remote transmitter configurations by model code |
| Typical duty | Water supply, wastewater and general industrial process lines |
| Diagnostics / protocols | Availability depends on exact sensor and transmitter configuration |
These are product-family values, not a promise for every configuration. Final sizing, materials, approvals, accuracy, pressure and temperature limits must be confirmed against the complete manufacturer order code and current technical documentation.
Best-Fit Application
Use AXW for conductive water and general industrial liquids, especially larger lines. Confirm full-pipe conditions, expected velocity, liner wear, grounding, submersible requirements and upstream disturbances before selection.
Quotation and Sizing Data Required
| Process | Fluid, phase, composition, conductivity/density/viscosity as applicable |
|---|---|
| Flow data | Minimum, normal and maximum flow; operating and reference conditions |
| Mechanical | Line size, schedule, connection standard, available straight run and orientation |
| Design limits | Operating/design pressure and temperature; wetted-material requirements |
| Electrical | Power, output/protocol, enclosure, hazardous-area and functional-safety requirements |
| Documentation | Required calibration, inspection, material and compliance documents |
Related Engineering Resources
- Magnetic flowmeter liner and electrode selection
- Industrial flowmeter installation checklist
- Industrial flowmeter selection guide
- ADMAG AXG for demanding process liquids
- Endress+Hauser Promag W 300 alternative
- Water and wastewater instrumentation
Official Manufacturer Reference
Yokogawa official ADMAG AXW product page and current general specifications
طلب عرض سعر
Send the complete model code, quantity and process data to sales@santanfluid.com. For a faster engineering review, use WhatsApp: +86 136 9022 3185 (China) or +62 823 1767 3750 (Indonesia). SANTAN will confirm the selectable configuration before quotation; no online payment is required.
ملخص المواصفات الفنية القياسية
استخدم هذه الحقول للاختيار الأولي. تعتمد القيم النهائية على رمز نموذج المصنع الكامل والخيارات المحددة.
| النموذج | مقياس التدفق المغناطيسي Yokogawa ADMAG AXW |
|---|---|
| نطاق القياس | يعتمد على التكوين؛ أكد النطاق المطلوب والكود النموذج الكامل. |
| الدقة | ±0.35% of flow rate for the stated family offering |
| توصيلة العملية | يعتمد على التكوين؛ أكد الحجم والتصنيف والمعيار والمواد المبللة. |
| إشارة الخرج | يعتمد على التكوين؛ تأكيد متطلبات التناظري والرقمي والاتصالات. |
| الشهادات | أكد موافقات المناطق الخطرة والسلامة الوظيفية والصحية والبحرية أو نقل الحضانة برمز النموذج. |
| صناعات التطبيق | يعتمد على التطبيق؛ أكد الوسط وظروف العملية ومتطلبات الصناعة. |
