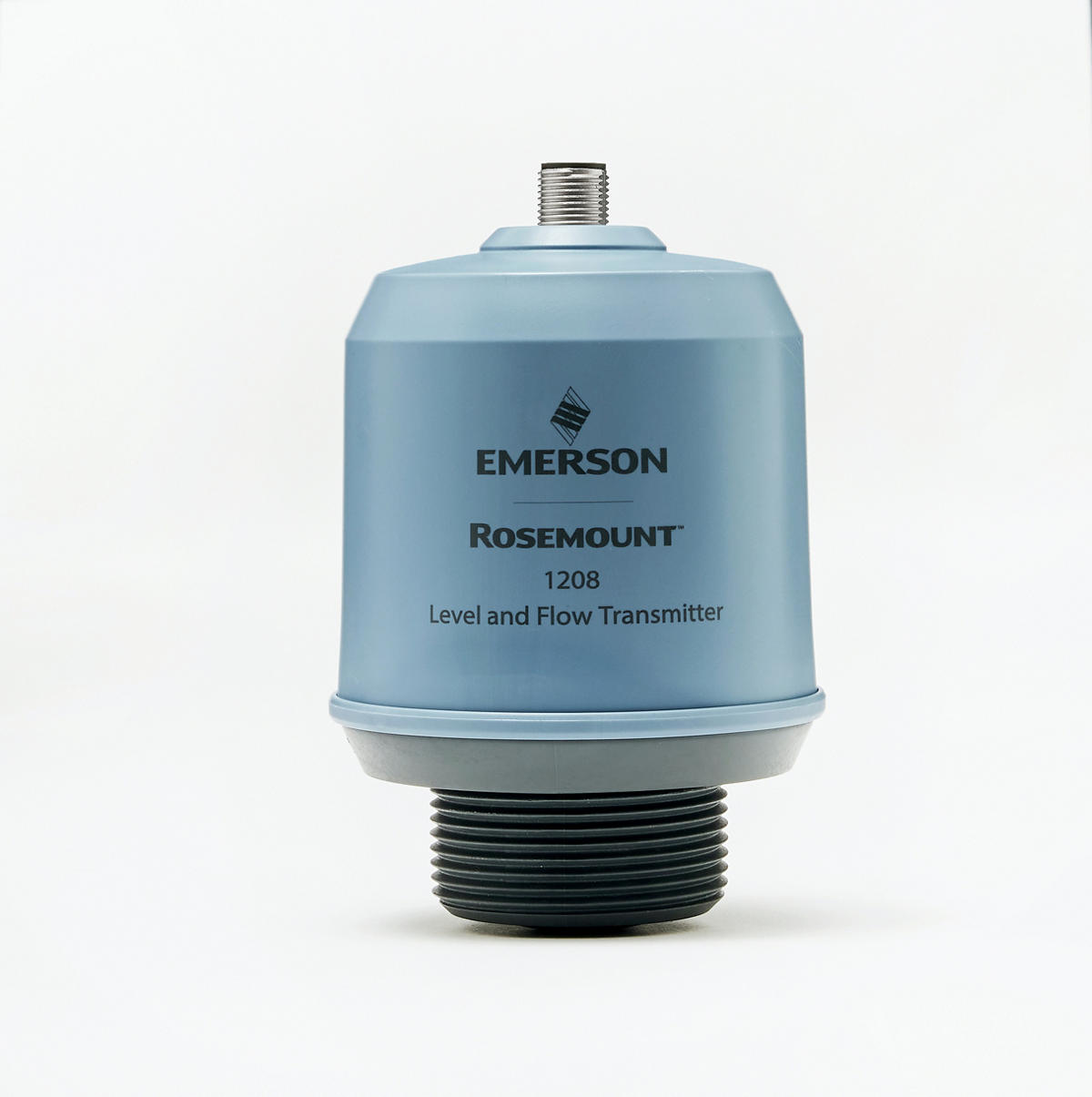

Rosemount 1208 Non-Contacting Level and Flow Transmitter Technical Data and Engineering Selection Guide
جهاز إرسال المستوى والتدفق غير الملامس Rosemount 1208 is supplied by SANTAN for new projects, installed-base replacement and complete model-code review. The verified information below supports preliminary engineering selection and quotation preparation.
Verified Product-Family Specifications
| مبدأ القياس | 80 GHz FMCW non-contacting radar |
|---|---|
| Functions | Continuous level and open-channel flow calculations |
| Published range | Up to 15 m, model and application dependent |
| Published accuracy | ±2 mm under stated reference conditions |
| Construction | Compact corrosion-resistant PVDF housing; fully submersible design |
| Connections | 1.5-in. G or NPT thread with compatible mounting accessories |
| Outputs | 4–20 mA/HART, 4–20 mA, IO-Link or switching outputs by model; Bluetooth option |
| Approvals | Drinking-water, food-grade and hazardous-area options depend on the selected model |
Published values describe the product family and are configuration dependent. Final range, accuracy, materials, pressure, temperature, approvals, communications and accessories must be checked against the selected Emerson/Rosemount model code and current documentation.
Best-Fit Application
Use the 1208 for water, wastewater, utility and basic process duties that need compact non-contact radar or open-channel flow calculation. Confirm channel geometry, flooding risk, PVDF compatibility, mounting, power and required protocol.
Quotation and Selection Data Required
| التطبيق | Continuous level, interface, open-channel flow, alarm or overfill duty |
|---|---|
| Process | Liquid/solid properties, dielectric constant, density, viscosity, foam, dust and buildup |
| Geometry | Measuring range, tank/silo dimensions, nozzle, obstructions and mounting position |
| Design limits | Operating/design pressure and temperature; wetted-material requirements |
| Electrical | Power, wired/wireless output, update rate, enclosure and hazardous-area requirements |
| Compliance | SIL, hygienic, custody-transfer, drinking-water or other project approvals |
Related Engineering Resources
- Level solutions for tanks, reactors and silos
- Radar vs ultrasonic level measurement
- Water and wastewater instrumentation
- Rosemount 3408 advanced radar
- SITRANS LT500 level/flow controller
- Level measurement products
Official Manufacturer Reference
Emerson official Rosemount 1208 product page and current technical downloads
طلب عرض سعر
Send the complete Rosemount model code, quantity and process data to sales@santanfluid.com. For a faster engineering review, use WhatsApp: +86 136 9022 3185 (China) or +62 823 1767 3750 (Indonesia). SANTAN will confirm the selectable configuration before quotation; no online payment is required.
ملخص المواصفات الفنية القياسية
استخدم هذه الحقول للاختيار الأولي. تعتمد القيم النهائية على رمز نموذج المصنع الكامل والخيارات المحددة.
| النموذج | جهاز إرسال المستوى والتدفق غير الملامس Rosemount 1208 |
|---|---|
| نطاق القياس | Up to 15 m for liquids and solids; up to 10 m for oil media with dielectric constant below 10; 80 GHz FMCW radar |
| الدقة | Accuracy +/-2 mm and repeatability +/-1 mm under reference conditions |
| توصيلة العملية | 1.5 inch G or NPT process thread with M12 electrical connector; compact PVDF fully submersible housing |
| إشارة الخرج | 4-20 mA HART, 4-20 mA, IO-Link or switching output by version; optional Bluetooth commissioning |
| الشهادات | Drinking-water, food-grade and hazardous-location approvals are available by ordered model and region |
| صناعات التطبيق | Water and wastewater; open-channel flow; utility tanks; chemical storage; food and beverage; compact machine skids |
