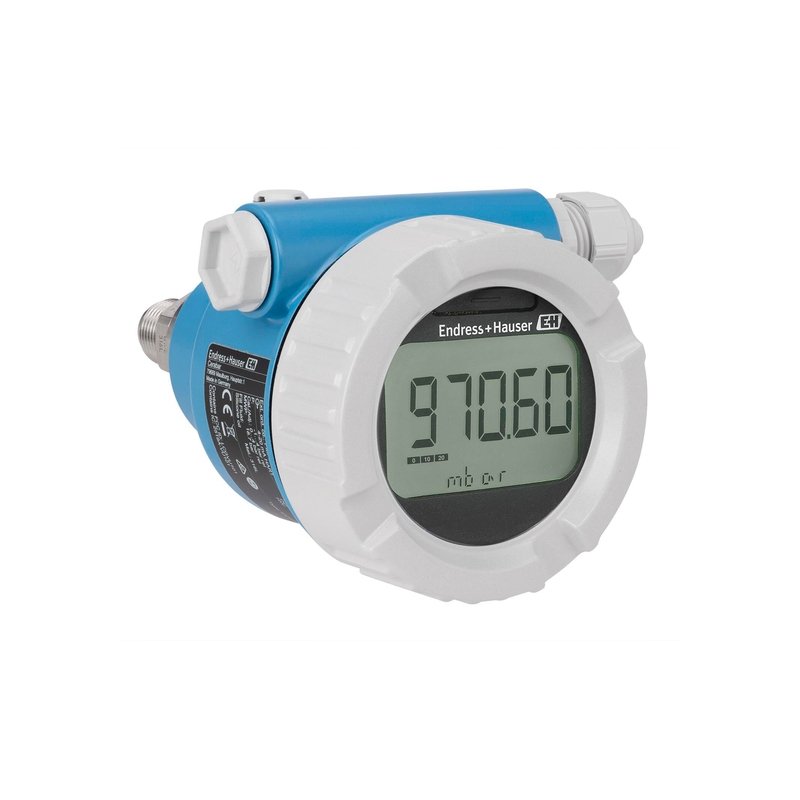

Endress+Hauser Cerabar PMC51B Ceramic Pressure Transmitter Technical Data and Selection Guide
Endress+Hauser Cerabar PMC51B Ceramic Pressure Transmitter is supplied by SANTAN for industrial pipeline instrumentation, process control and replacement projects. This page gives engineers and purchasing teams verified family-level data for model comparison and quotation preparation.
Verified Technical Specifications
| Brand / model | Cerabar PMC51B |
|---|---|
| Measured variable / service | Gauge and absolute pressure measurement of liquids and gases |
| Accuracy / performance | Up to +/-0.075% standard or +/-0.055% Platinum |
| نطاق القياس | 100 mbar to 40 bar (1.5 to 600 psi) |
| Process temperature | -40 to +100 degC |
| Process pressure | Measuring cells up to 40 bar; final overpressure limit depends on order code |
| توصيل العملية | Threaded and hygienic process connections by configuration |
| الإخراج / الاتصالات | 4-20 mA HART; secure Bluetooth remote operation option |
| Materials / approvals | Ceraphire ceramic membrane; FKM, EPDM, HNBR, Perlast or Kalrez seals |
Specifications describe the product family. Final range, materials, approvals, accuracy and connection details depend on the complete Endress+Hauser order code and current technical documentation.
Typical Applications
- Utilities
- water treatment
- food process lines
- gas and liquid pressure monitoring
Selection Information Required
| Process | Medium, conductivity or density, operating pressure and temperature |
|---|---|
| القياس | Minimum, normal and maximum range; required accuracy and response time |
| Mechanical | Pipe or vessel size, connection standard, wetted materials and installation limits |
| Electrical | Power supply, output protocol, enclosure and hazardous-area approval |
Related Products and Solutions
- Endress+Hauser product range
- All process instrumentation
- Industry solutions
- Contact SANTAN engineering sales
Official Reference
Endress+Hauser official product documentation
طلب عرض سعر
Send the model code, quantity and process data to sales@santanfluid.com. WhatsApp +86 136 9022 3185 or +62 823 1767 3750. No online payment is required.
ملخص المواصفات الفنية القياسية
استخدم هذه الحقول للاختيار الأولي. تعتمد القيم النهائية على رمز نموذج المصنع الكامل والخيارات المحددة.
| النموذج | EH-PMC51B-CERABAR |
|---|---|
| نطاق القياس | 100 mbar to 40 bar (1.5 to 600 psi) |
| الدقة | يعتمد على التكوين؛ أكد فئة الدقة والنطاق المعاير. |
| توصيلة العملية | Threaded and hygienic process connections by configuration |
| إشارة الخرج | يعتمد على التكوين؛ تأكيد متطلبات التناظري والرقمي والاتصالات. |
| الشهادات | أكد موافقات المناطق الخطرة والسلامة الوظيفية والصحية والبحرية أو نقل الحضانة برمز النموذج. |
| صناعات التطبيق | يعتمد على التطبيق؛ أكد الوسط وظروف العملية ومتطلبات الصناعة. |
